Blum Tip-On for Doors

Handle-less furniture is becoming more and more popular. TIP-ON for doors is the mechanical solution for opening doors. Doors open easily with just a light touch. With TIP-ON, doors close simply while magnets ensure the door is closed securely.

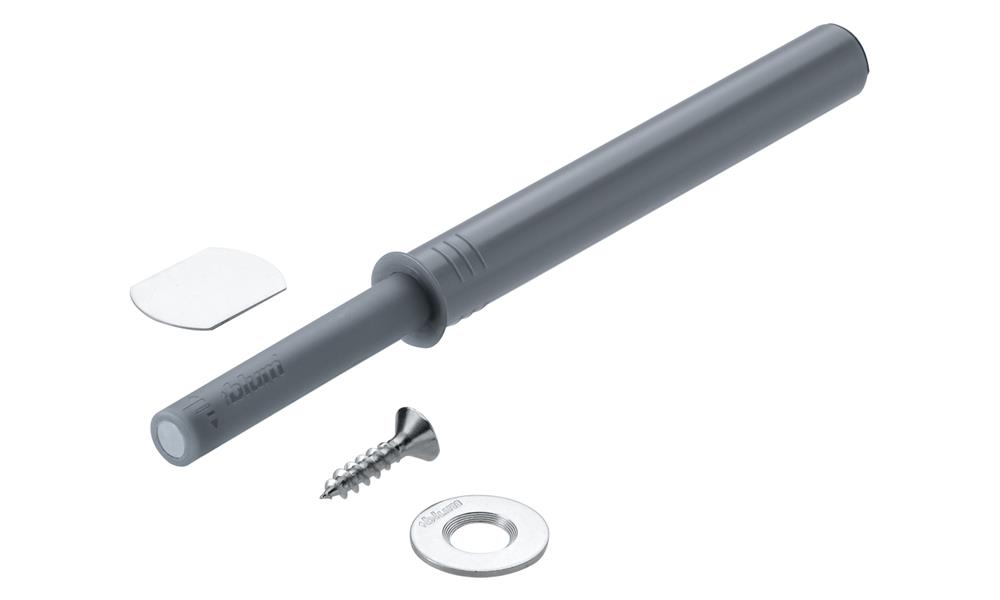

Blum TIP-ON Mechanism Sets

Short piston:

For overlay doors up to approx. 1300mm in height
For unsprung hinges
Adjustment from + 4.0/– 1.0mm

Long piston:

For overlay doors starting from approx. 1300mm in height or inset doors
For unsprung hinges
Adjustment from + 4.0/– 1.0mm

Sets include glue-on and screw-on catch plates

	Code	Type

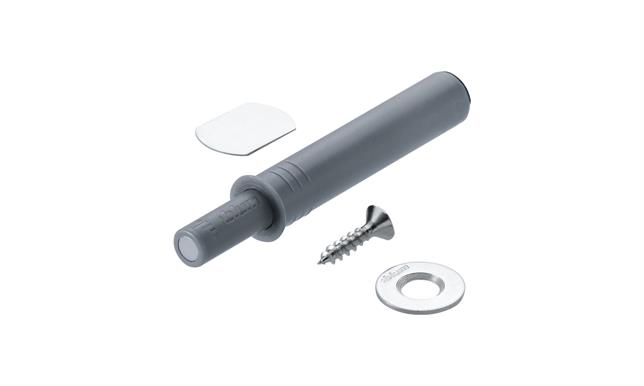

	956.1004 72312Blum TIP-ON for doors short version set	Short set	£POA ex vat
	956A1004 44528Blum TIP-ON for doors long version set (Magnetic)	Long set	£POA ex vat

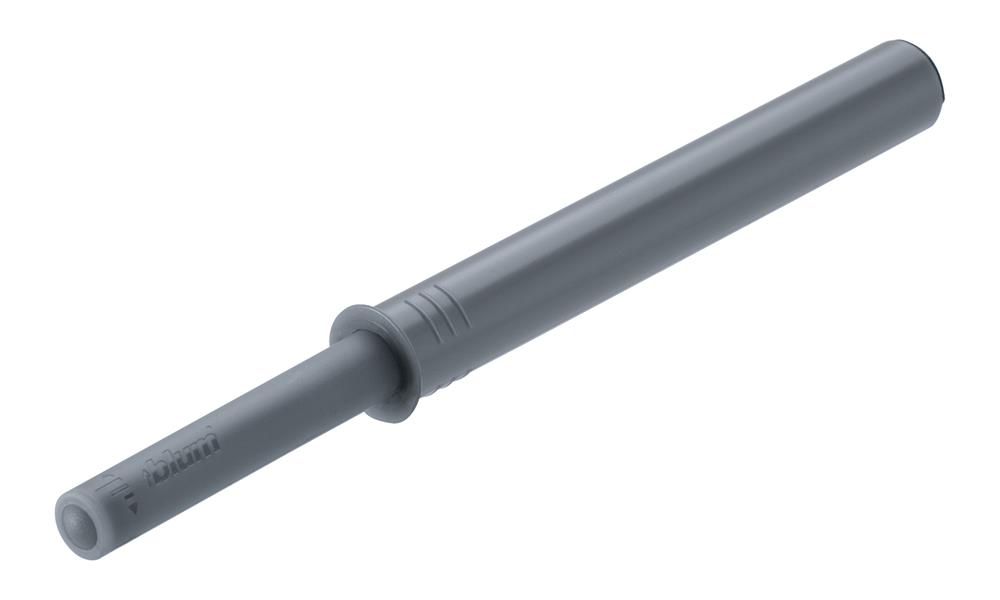

Blum TIP-ON Mechanisms

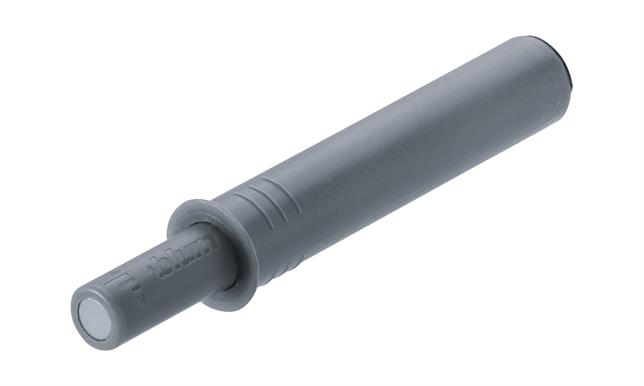

Short piston:

For overlay doors up to approx. 1300mm in height
For unsprung hinges
Adjustment from + 4.0/– 1.0mm

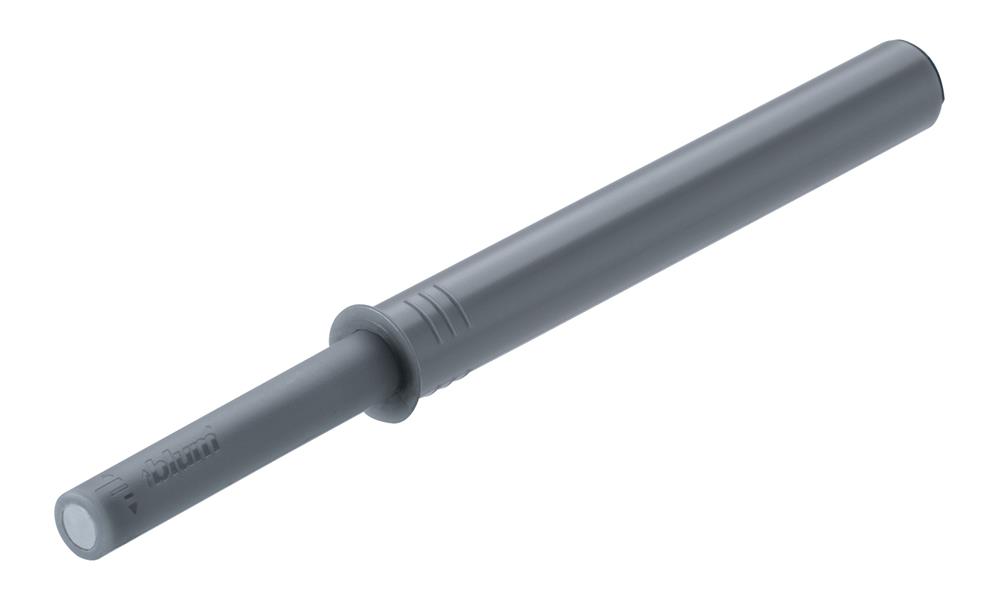

Long piston:

For overlay doors starting from approx. 1300mm in height or inset doors
For unsprung hinges
Adjustment from + 4.0/– 1.0mm

	Code	Description
	956.1002 65405Blum TIP-ON for doors mechanism short version	Blum TIP-ON for doors mechanism short version	£POA ex vat
	956A1002 12717Blum TIP-ON for doors mechanism long version	Blum TIP-ON for doors mechanism long version	£POA ex vat

Blum TIP-ON Mechanism for Special Applications

For use when un-sprung hinges are not an available option.

Magnetic version with un-sprung hinges always recommended where possible.

956A1006 - Product Data Sheet

	Code	Type
	956A1006 87613Blum TIP-ON for doors long version set (for use with sprung hinges)	Long Piston - with Bumper	£POA ex vat

Blum Tip-On Adapters

Screw-on adapters, for use with Blum Tip-On piston mechanisms.

	Code	Type
	956A1501 60447Blum cruciform adapter plate to suit TIP-ON for doors	Cruciform	£POA ex vat

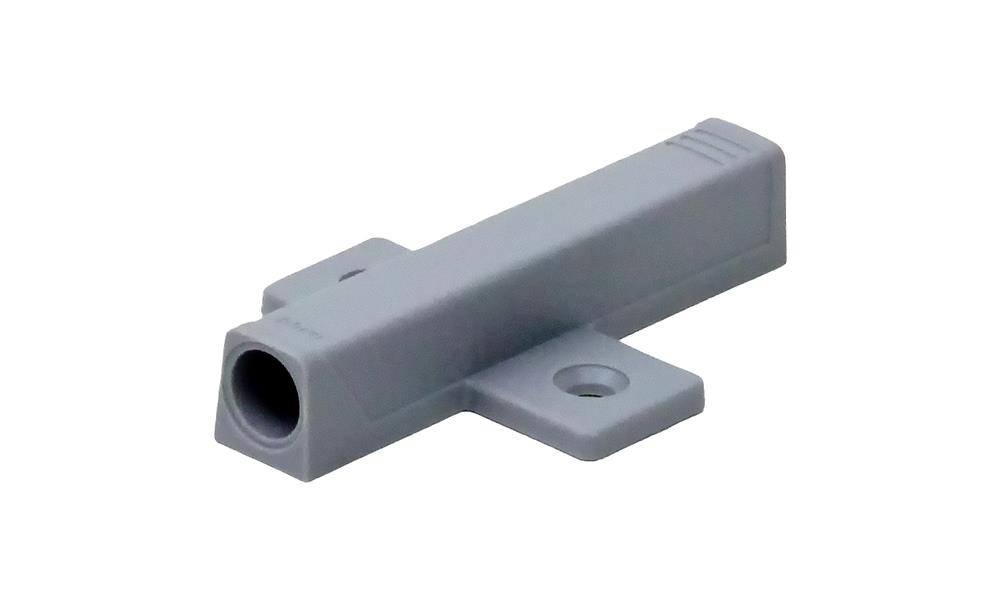

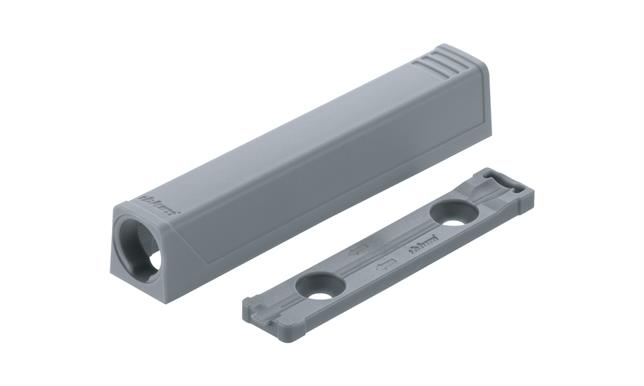

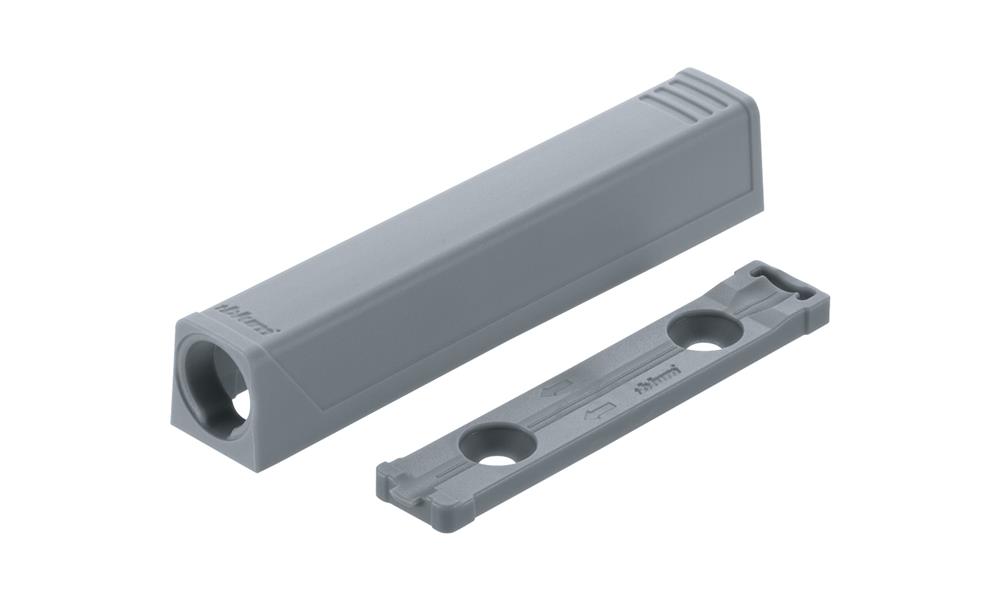

	956A1201 70382Blum TIP-ON for doors adapter plate	In-Line	£POA ex vat

Blum Tip-On Metal Catches

Self adhesive or screw-on metal catches for use with Blum Tip-On piston mechanisms.

	Code	Type

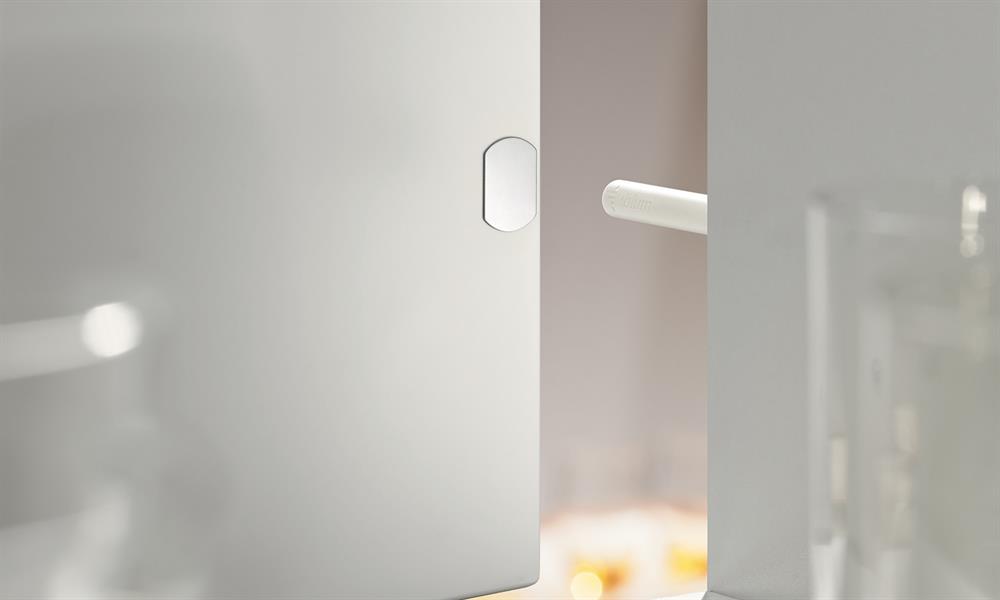

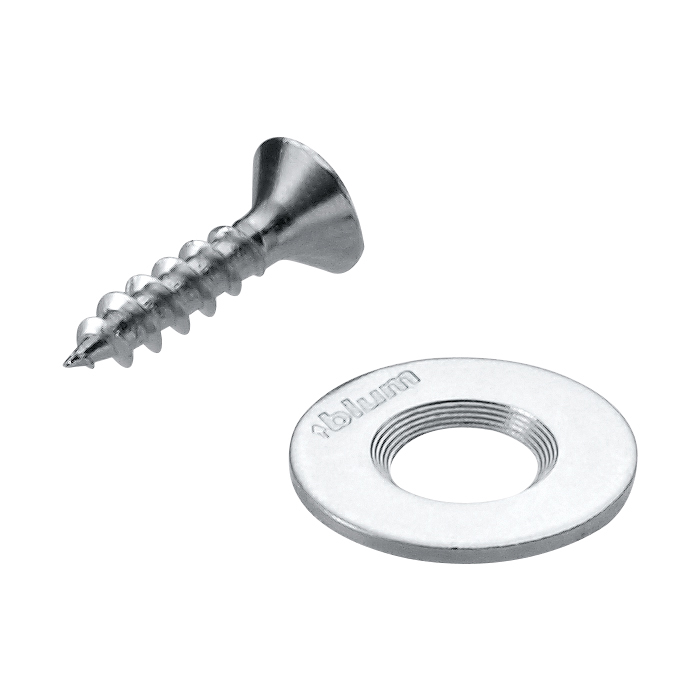

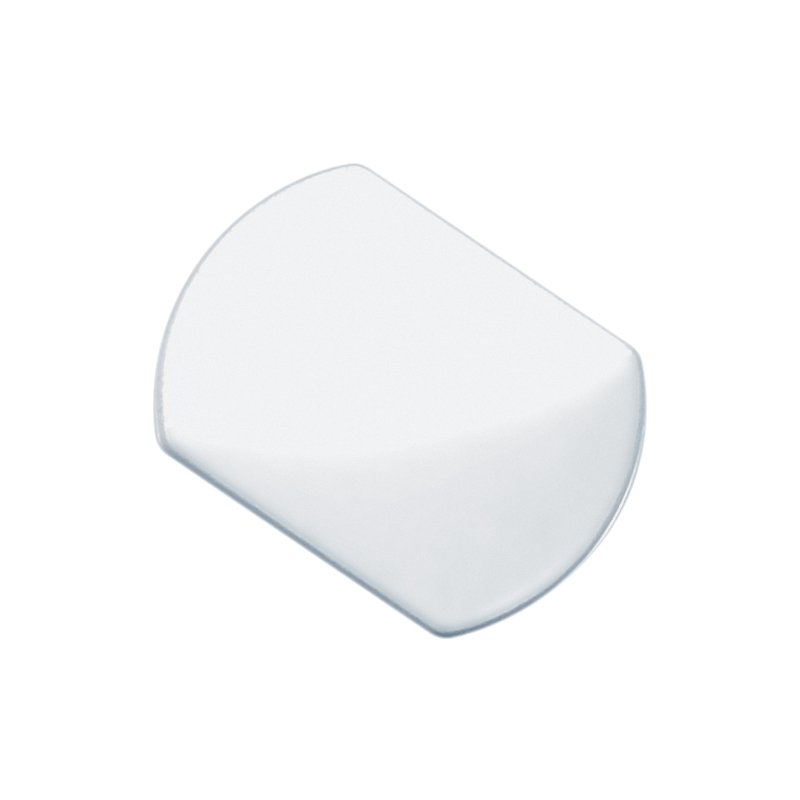

	955.1008 29829Blum TIP-ON for doors self adhesive metal catch	Self Adhesive	£POA ex vat

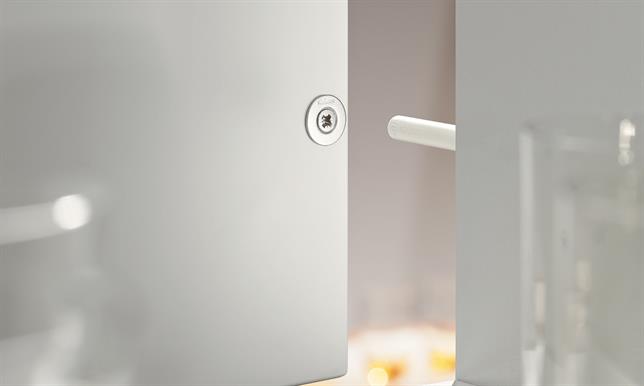

	955.1008S 98870Blum TIP-ON for doors screw on	Screw On	£POA ex vat

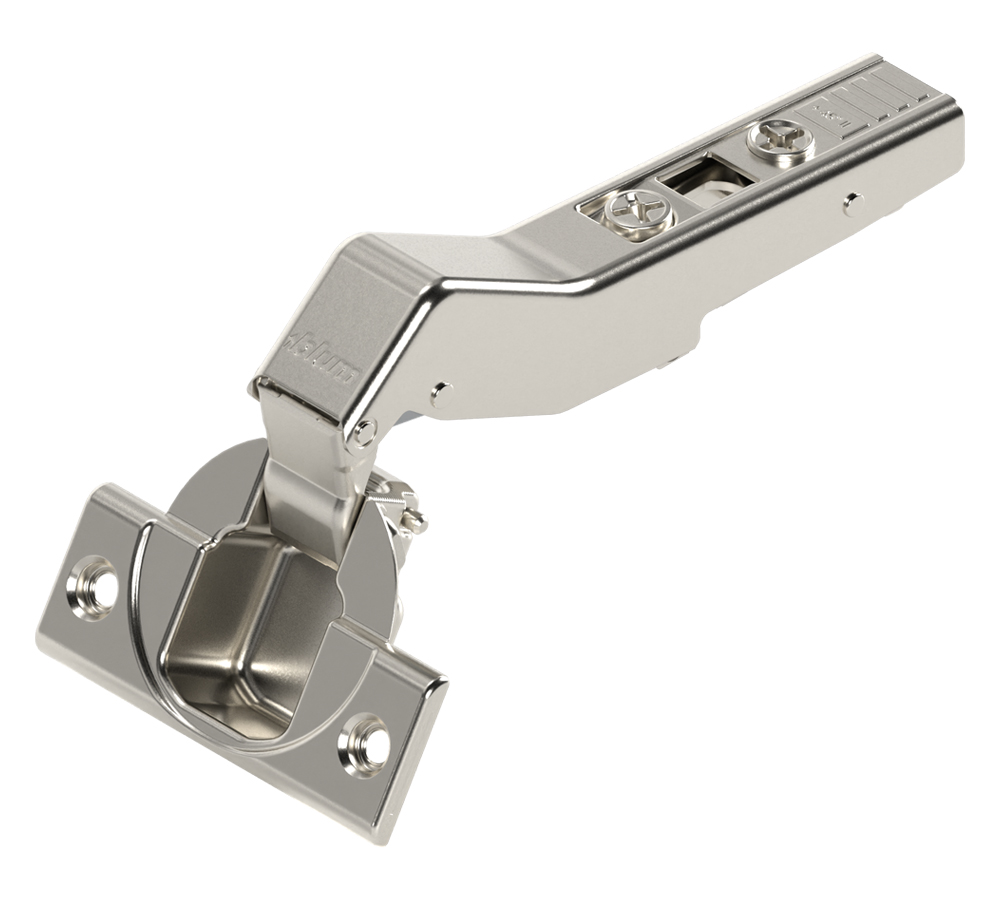

Blum Unsprung Clip Top Hinges

Tip-On for doors must be used with a Clip-Top unsprung hinge.

WARNING: If you are using the 170° hinge in furniture that can be accessed by small children it should be noted that it is possible for small fingers to get in between the working mechanism of the hinge. In these cases a 155° hinge could be used as an alternative or all relevant doors should be fitted with child safety latches. This warning should be passed on to subsequent users of the product.

Code	Opening	Boss	Overlay	Closing Mechanism	Box Qty

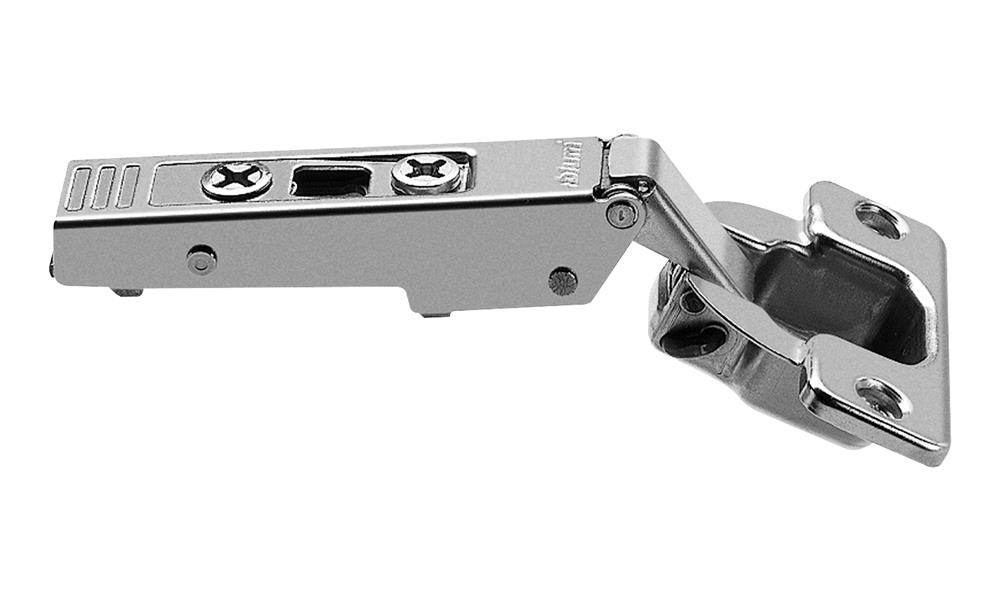

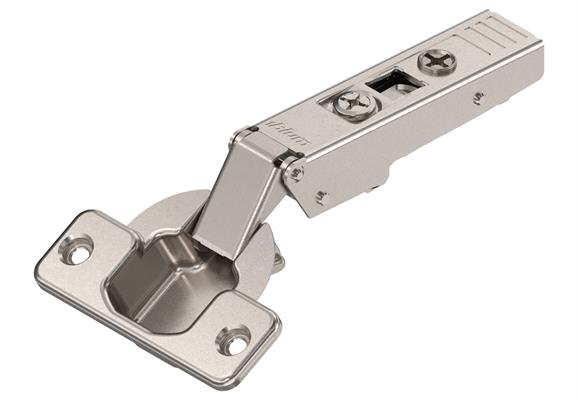

70T5550 63107Blum Clip-top 120 degree unsprung hinge	120	Screw on	Full	Unsprung	50	£POA ex vat

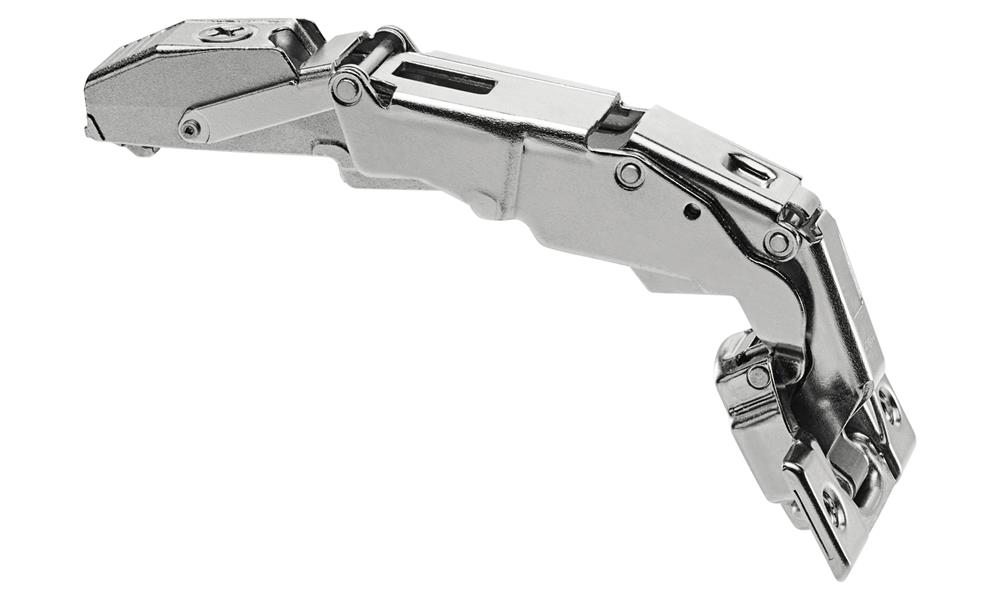

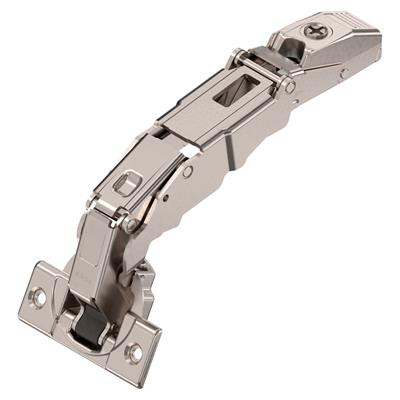

70T7550.TL 38266Blum 155° CLIP top zero protrusion UNSPRUNG	155	Screw on	Full	Unsprung	125	£POA ex vat

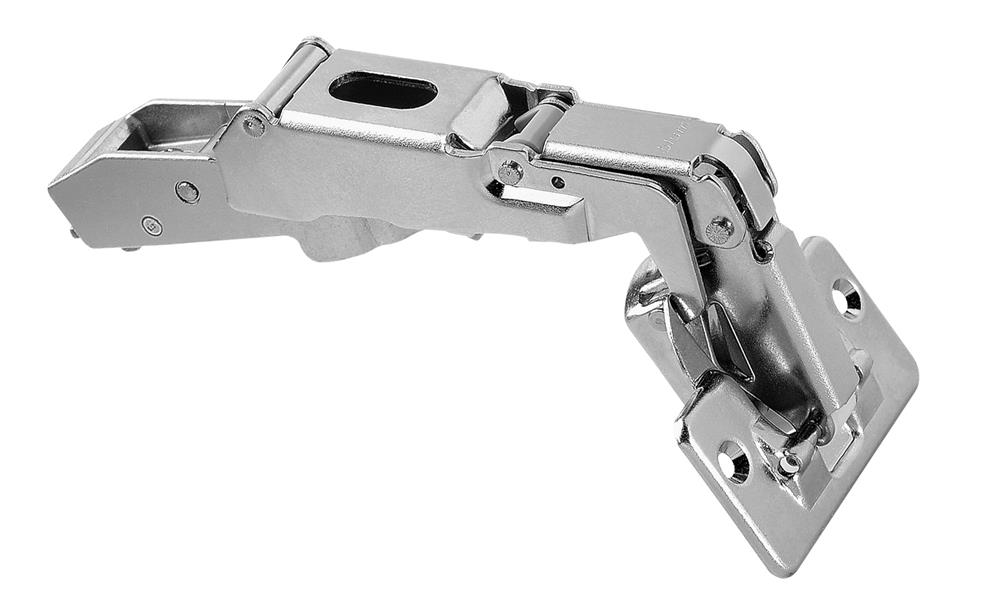

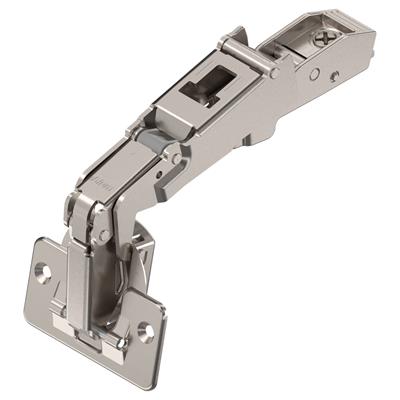

70T6550 94017Blum Clip Top 170 degree hinge Unsprung	170	Screw on	Full	Unsprung	125	£POA ex vat
