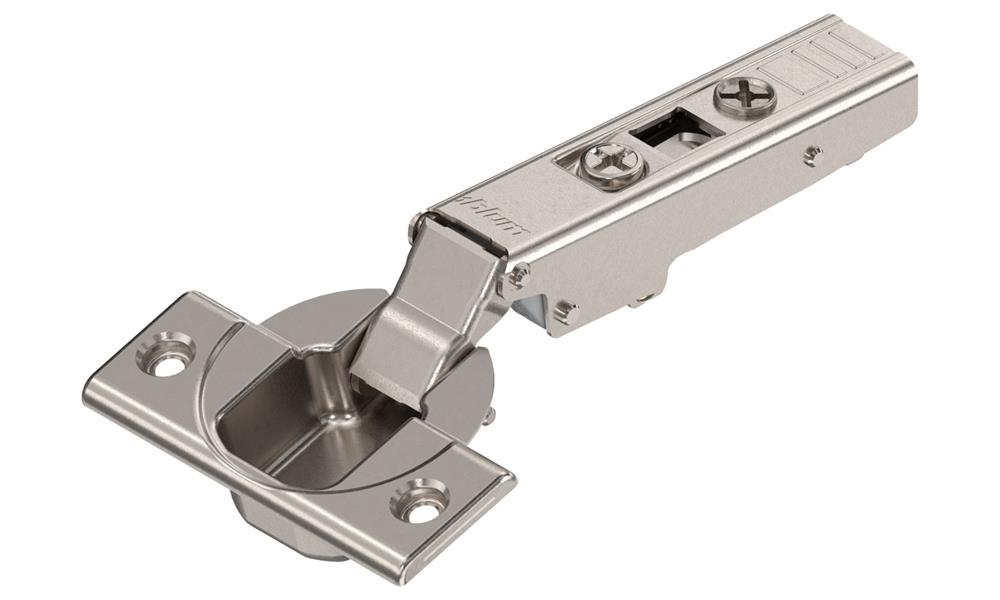

Blum 110 degree clip top hinge unsprung

Quick Order Code: 57494 / Product Code: 70T3550.TL

• List Price: £POA exc. VAT
• Selling Unit: EACH
• Please log in for your custom prices, stock info, offers and much more.
• Don't have an account? Click here to learn how to apply for yours.

Rating: 4.2 / 5 - 5 Rating(s)

Opening	110
Boss	Screw on
Overlay	Full
Closing Mechanism	Unsprung
Box Qty	50

Additional Features / Properties

Cover cap type	70T3504 – boss cover cap
Type of side adjustment	With screw
Type of depth adjustment	convenient with spiral screw
Item package	1 piece
Maximum drilling distance	7 mm
Minimum drilling distance	3 mm
Fixed dimension / factory setting	11 mm
Weight	677.63 kg
collision measurement (hinge arm height)	21.5 mm
Cranking	Overlay application
Country of origin	AT
Delivery unit	50
Height Outside carton	32.7 cm
Layer quantity	2000
Lenght Outside carton	55.6 cm
Palette height without transport equipment	98 cm
Pallet quantity	6000
Replenishment lead time	2 day
Transport time	2 day
Volume/1000	156.8 dm³
Weight (tare)/1000	6.032 kg
Width Outside carton	19.9 cm
hinge variant	with free movement for TIP-ON
mounting plate system	CLIP
Colour/surface	Nickel plated
Opening angle	110
Closing mechanism	unsprung
SAP-Distribution status	20 - On sale
SAP - Program allocation	SP - Stock Program
Side adjustment	+/- 2 mm mm
Depth adjustment	+ 3/- 2 mm mm
Boss assembly	screw-on
Boss material	Steel boss
boss finish	Nickel plated
Boss adjustment	none
door material	Wood
Gap	1.5 mm
Weight based on	10000 Piece
application	standard hinge
packaging	Commercial packing
Packaging unit 1	50
Packaging unit 2	250
Packaging unit 3	0
Customs tariff number	8302100090
