Blum Clip Backplates

View Blum Resources & Technical Information

Compatible with both the Clip top and Clip range of hinges, these back plates allow doors to simply be clipped on and off a cabinet without the need for tools. There are two types of clip back plate, 0mm suit 18mm carcases and 3mm suit 15mm carcases.

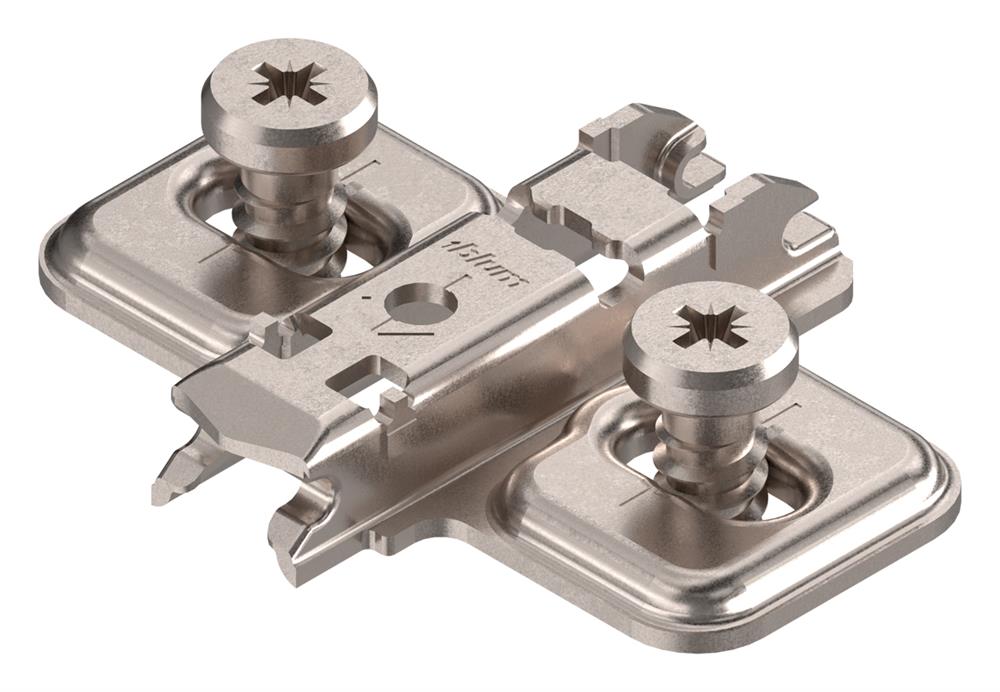

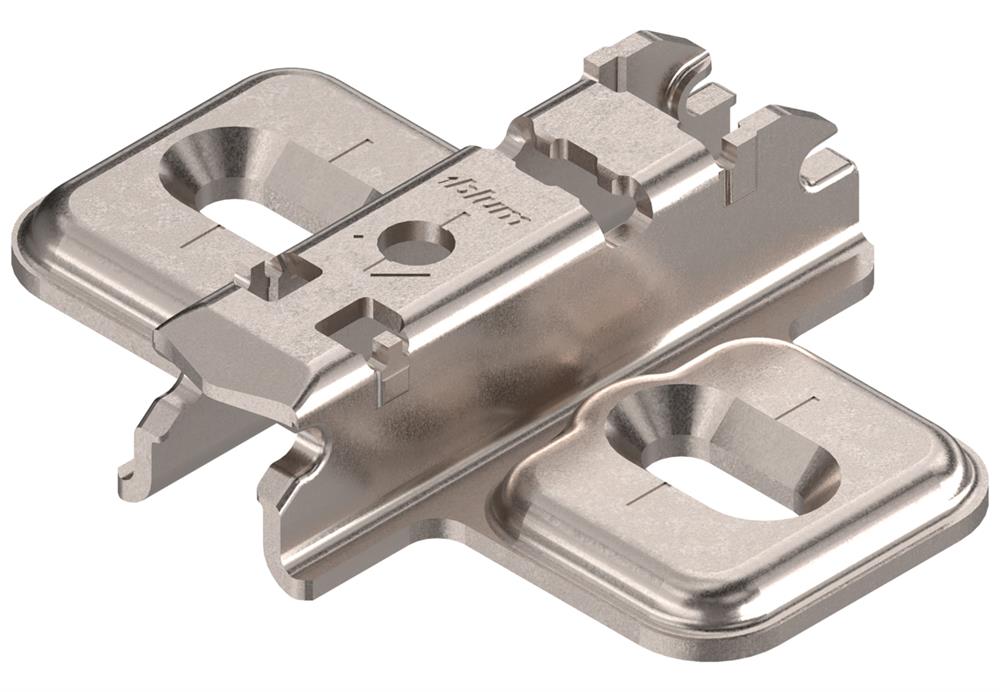

Blum Height Adjustable Clip Backplates

0mm backplates suit 18mm carcases, 3mm backplates suit 15mm carcases. Can be used with CLIP top and CLIP hinges only.

Nickel plated steel.

0mm
3mm
CodeHeightTypeBox QtyPrice
173L6100
29534
Blum 0mm height adjustable steel plate for CLIP Top hinges0mmCruciform height adjustable500£POA
173L6130
05997
Blum 3mm height adjustable steel plate for CLIP Top hinges3mmCruciform height adjustable500£POA

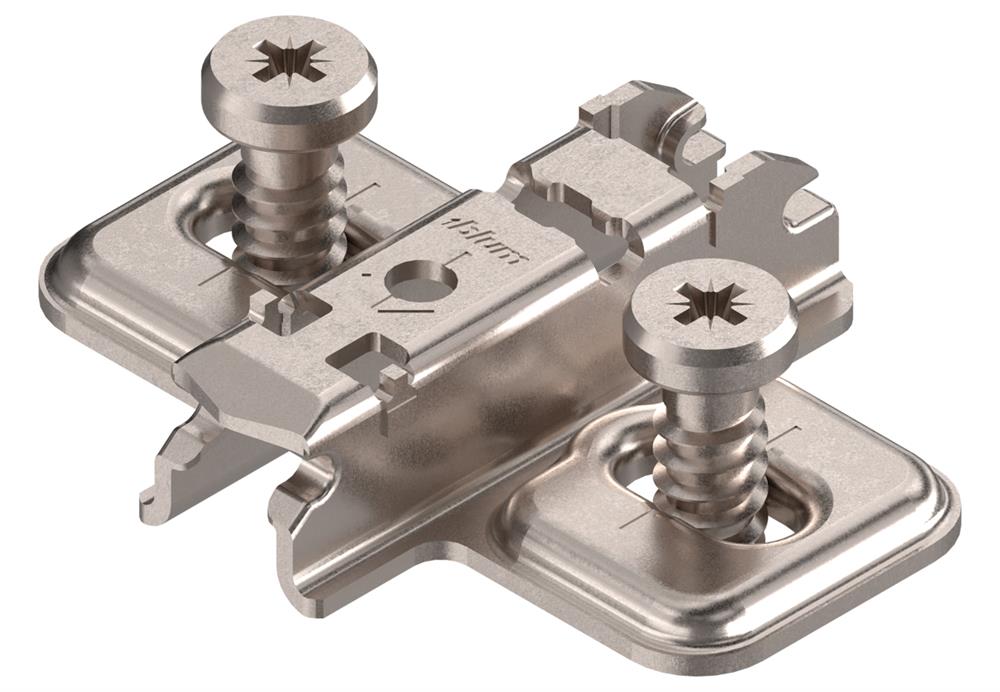

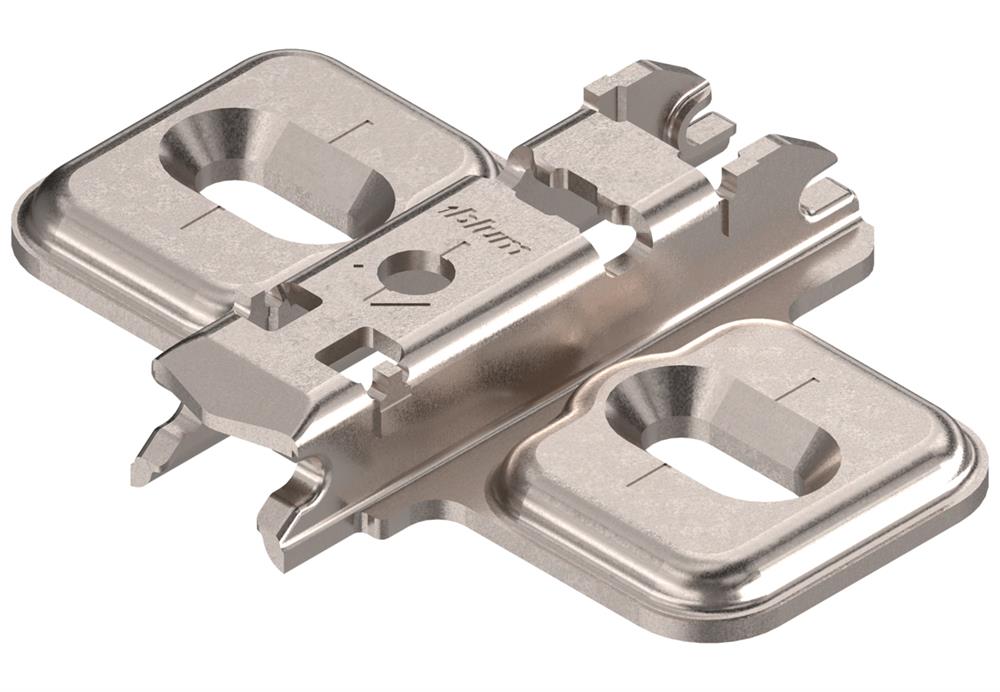

Blum Height Adjustable Clip Backplates with Euro Screws

0mm backplates suit 18mm carcases, 3mm backplates suit 15mm carcases. Can be used with CLIP top and CLIP hinges only.

Nickel plated steel.

0mm
3mm
CodeHeightTypeBox QtyPrice
173L8100
35135
Blum 0mm height adjustable steel plate for CLIP Top hinges with euroscrews0mmCruciform with euroscrew500£POA
173L8130
78555
Blum 3mm height adjustable steel plate for CLIP Top hinges with euroscrews3mmCruciform with euroscrew500£POA

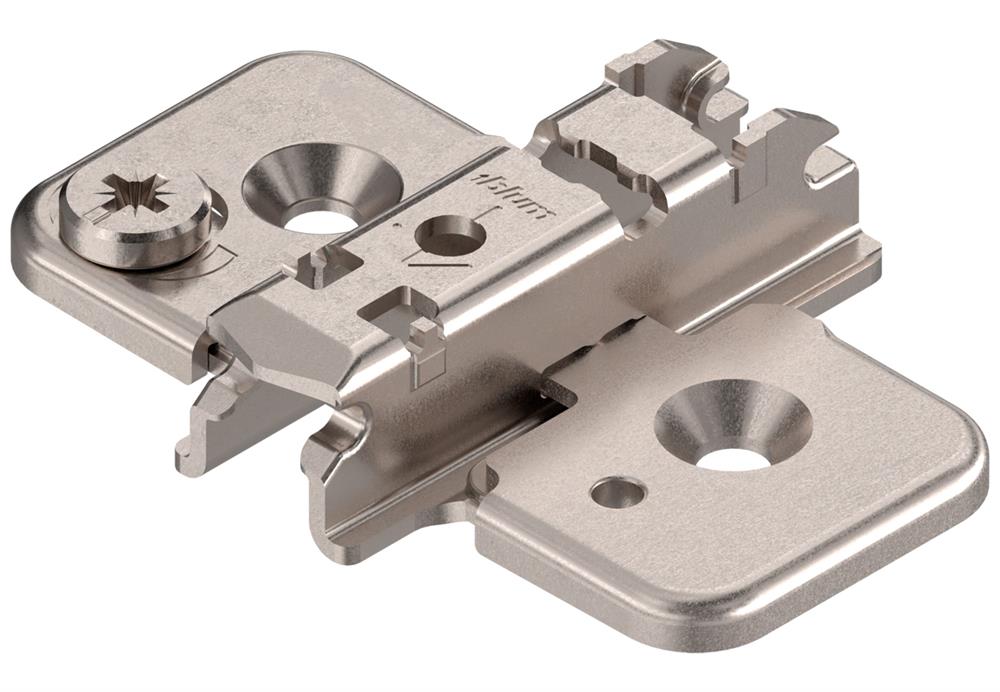

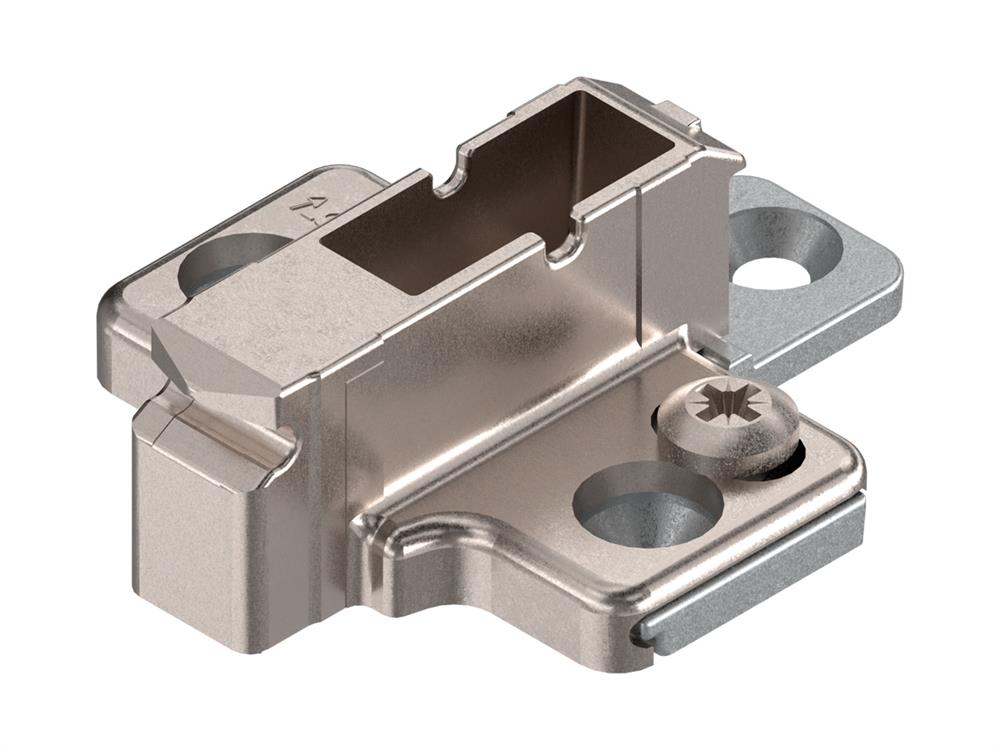

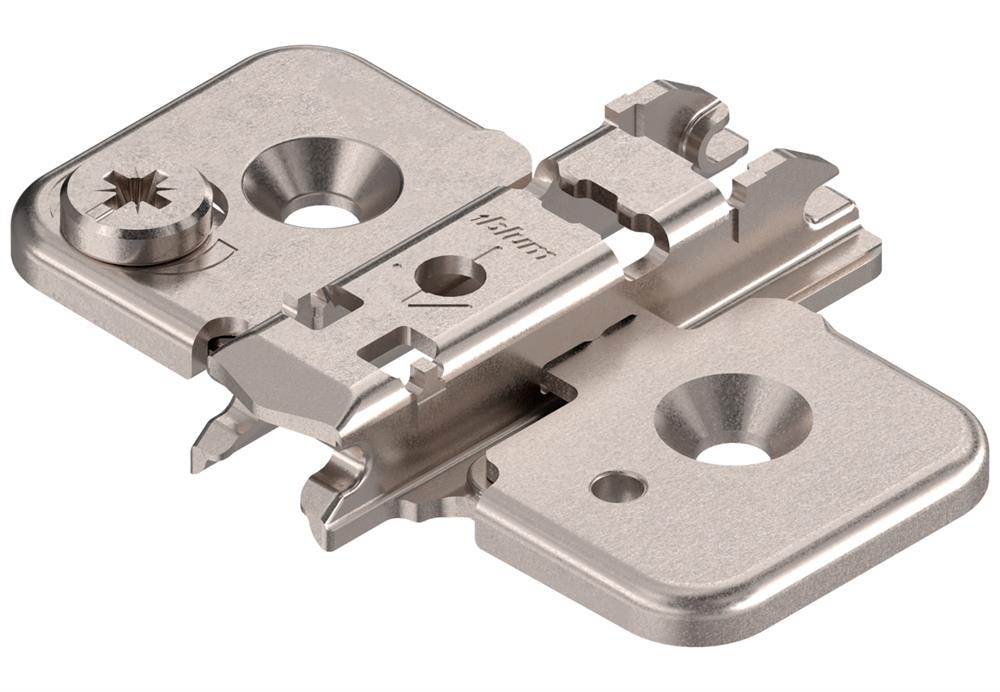

Blum Cam Adjustable Clip Backplates

0mm backplates suit 18mm carcases, 3mm backplates suit 15mm carcases. Can be used with CLIP top and CLIP hinges only.

Nickel plated steel.

0mm
3mm
CodeHeightTypeBox QtyPrice
173H7100
91087
Blum 0mm cam adjustable steel plate for CLIP Top hinges0mmCruciform cam adjustable 2 part500£POA
173H7130
91465
Blum 3mm cam adjustable steel plate for CLIP Top hinges3mmCruciform cam adjustable 2 part500£POA

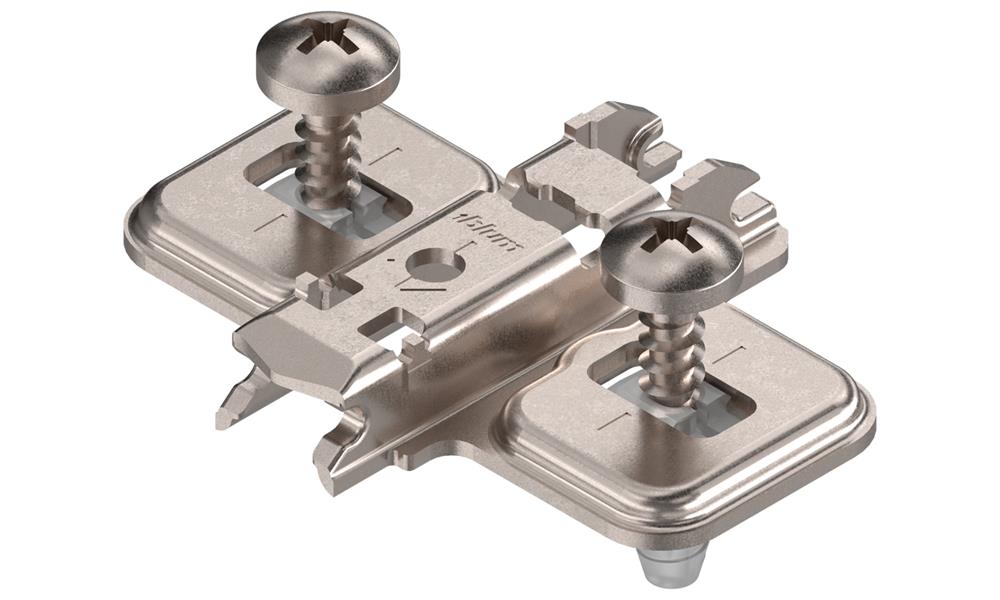

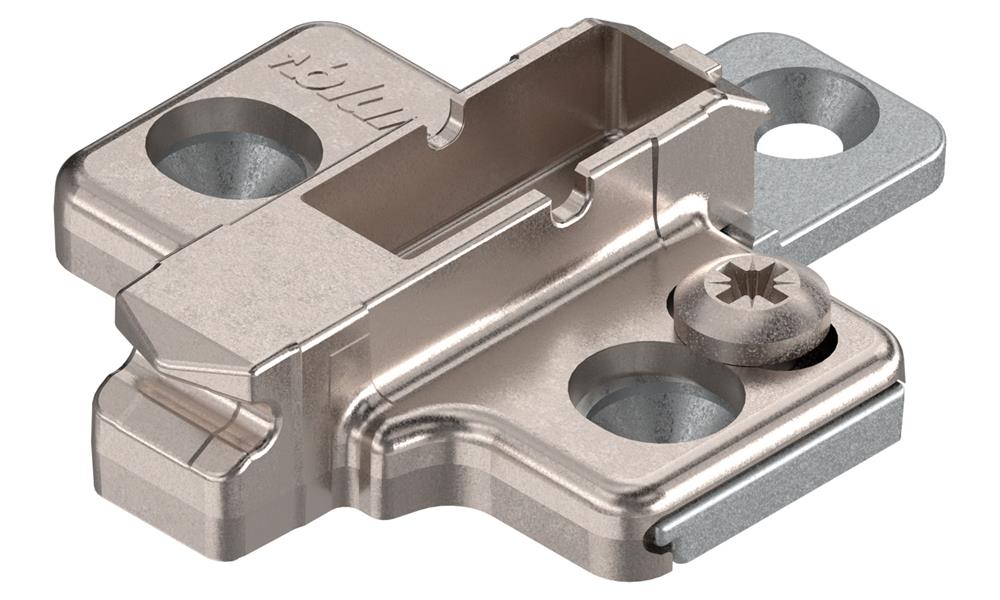

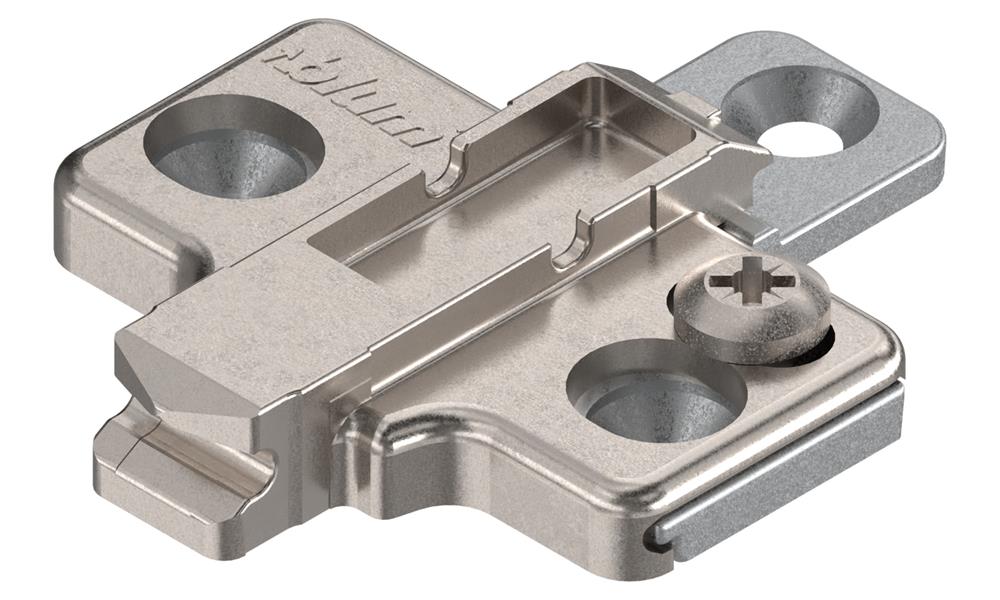

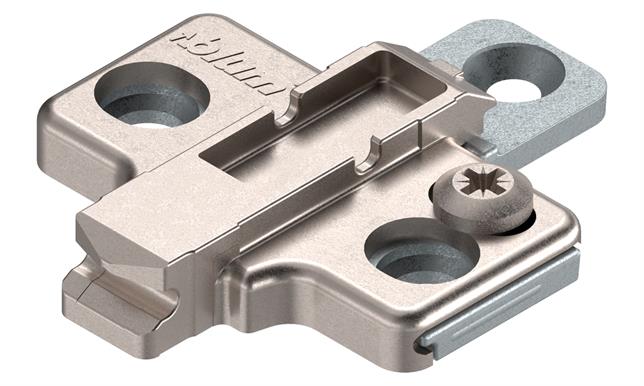

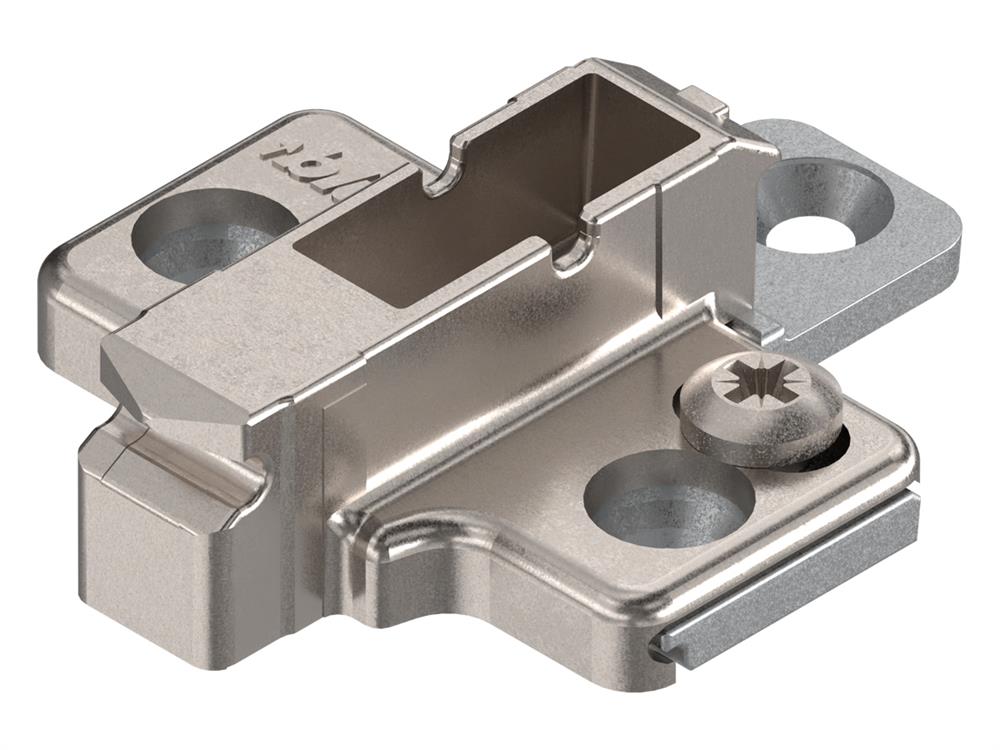

Blum Two Part Height Adjustable Backplates

0mm backplates suit 18mm carcases, 3mm backplates suit 15mm carcases. Can be used with CLIP top and CLIP hinges only.

Nickel plated steel.

0mm
3mm
CodeHeightTypeBox QtyPrice
175H7100
99092
Blum 0mm height adjustable diecast plate for CLIP Top hinges0mmCruciform 2 part500£POA
175H7130
25537
Blum 3mm height adjustable diecast plate for CLIP Top hinges3mmCruciform 2 part500£POA

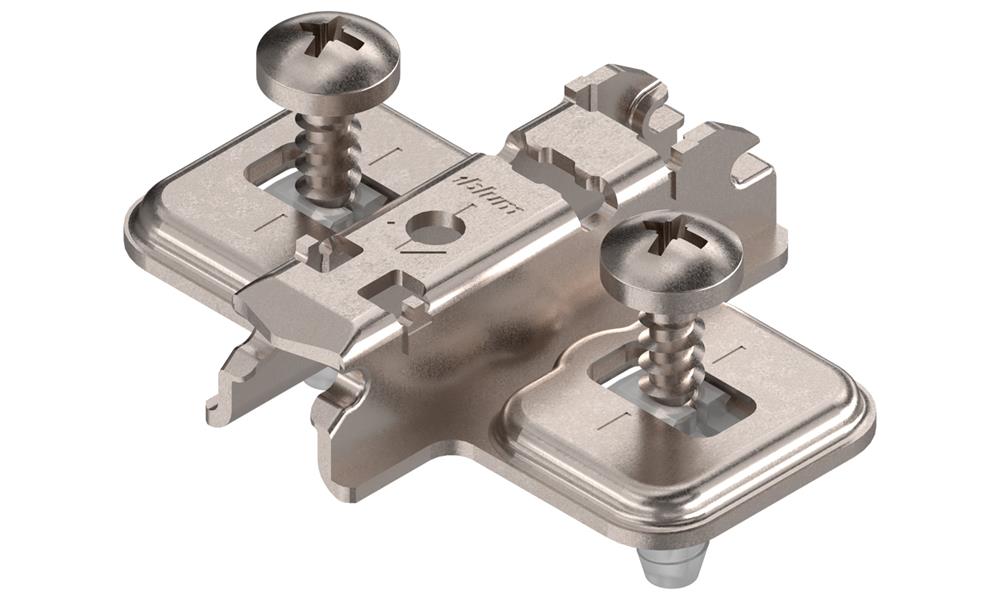

Blum Two Part Height Adjustable Backplate for Euro Screws

Nickel plated steel.

Stuart Rules
CodeHeightTypeBox QtyPrice
175H9100
09327
Blum 0mm height adjustable plate for CLIP Top hinges for use with system screws0mmCruciform 2 part250£POA

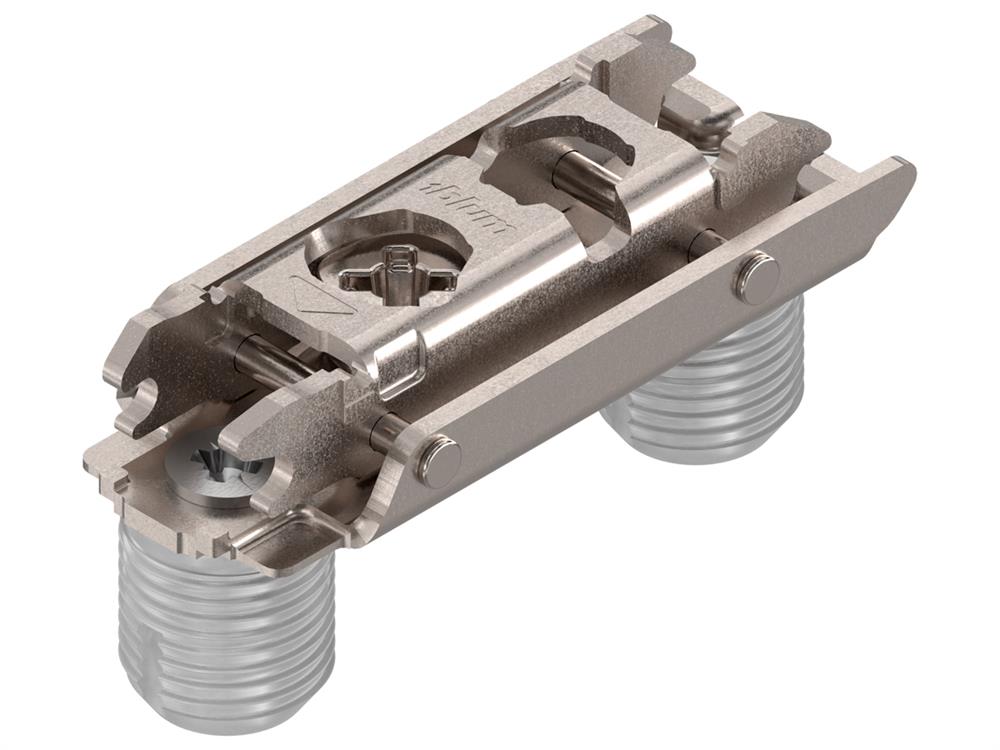

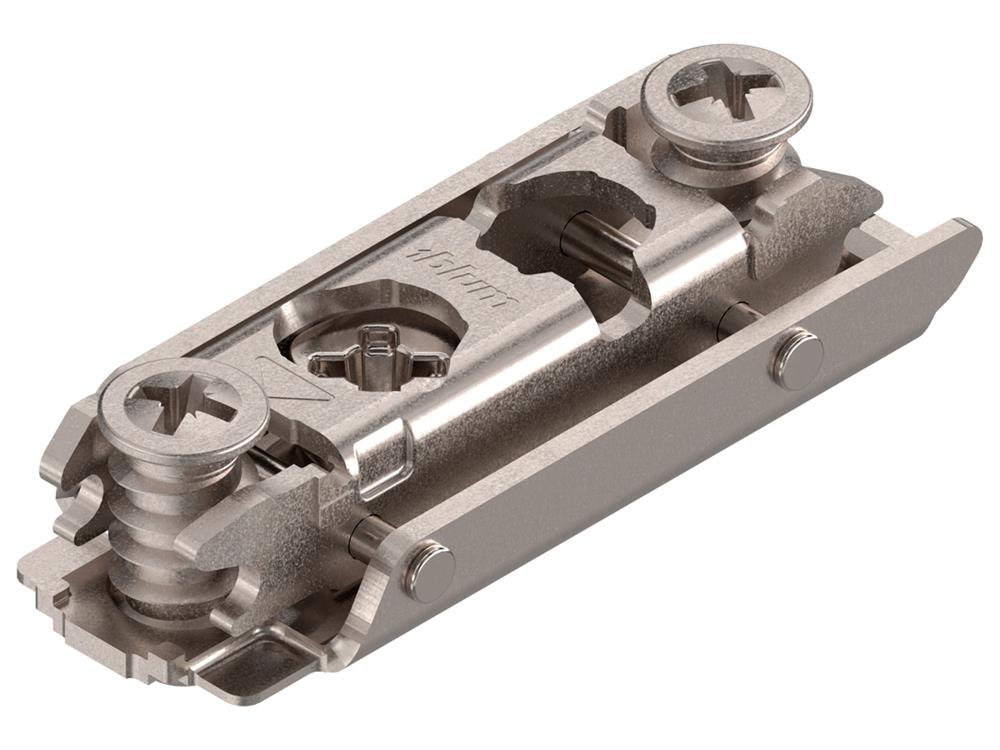

Blum Height Adjustable Clip Backplates with Dowels

Nickel plated steel.

0mm
3mm
CodeHeightTypePrice
174E6100
81490
Blum 0mm Clip backplate with dowels0mmCruciform with Dowels£POA
174E6130.01
63953
Blum 3mm clip expando mounting plate3mmCruciform with Dowels£POA

Blum Cam Adjustable Clip Backplate with Dowels

Nickel plated steel.

Stuart Rules
CodeHeightTypePrice
174H7100E
39395
Blum 0mm cruciform cam mounting plate with split dowels and screws0mmCruciform height adjustable£POA

Blum In-Line Clip Backplates

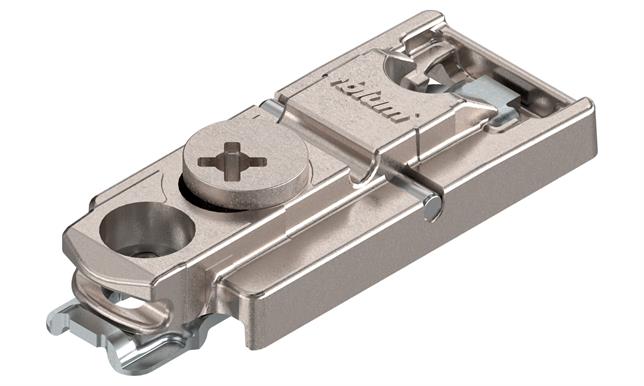

Blum Horizontal Height Adjustable Clip Backplate

Stuart Rules
CodeHeightTypeBox QtyPrice
175H5400
36242
Blum 0mm horizontal height adjustable diecast plate for CLIP Top hinges0mmHorizontal height adjustable250£POA

Blum 0mm Zinc Horizontal Cam Mounting Plate

Stuart Rules
CodeHeightTypePrice
177H5100
63199
Blum 0mm Zinc Horizontal Cam Mounting Plate0mmHorizontal Knock In£POA

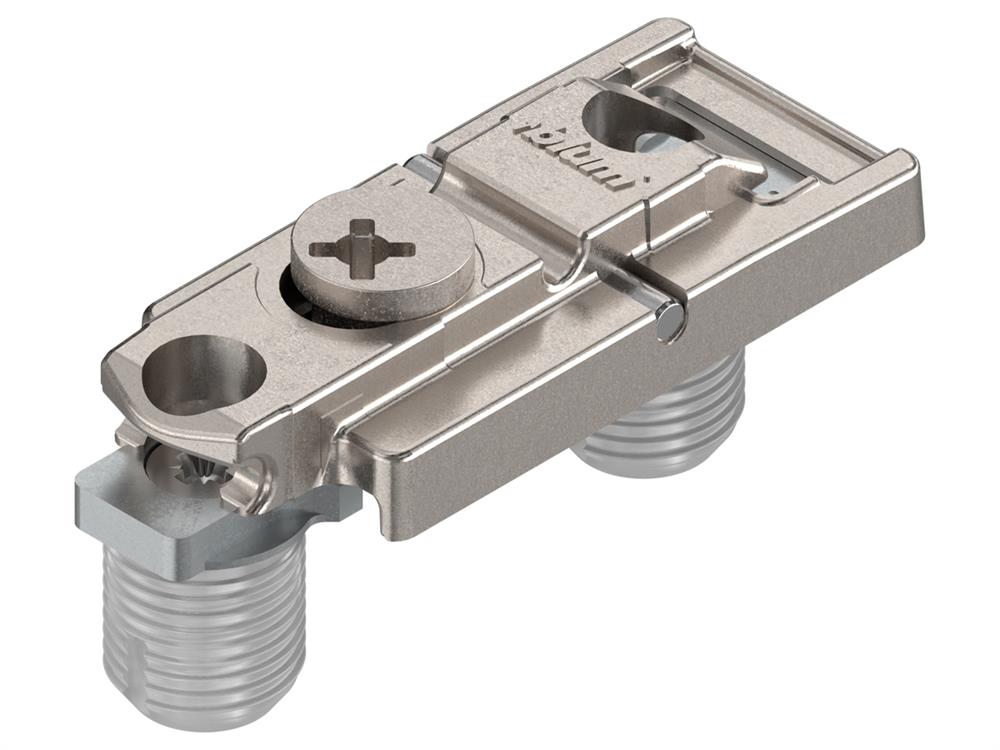

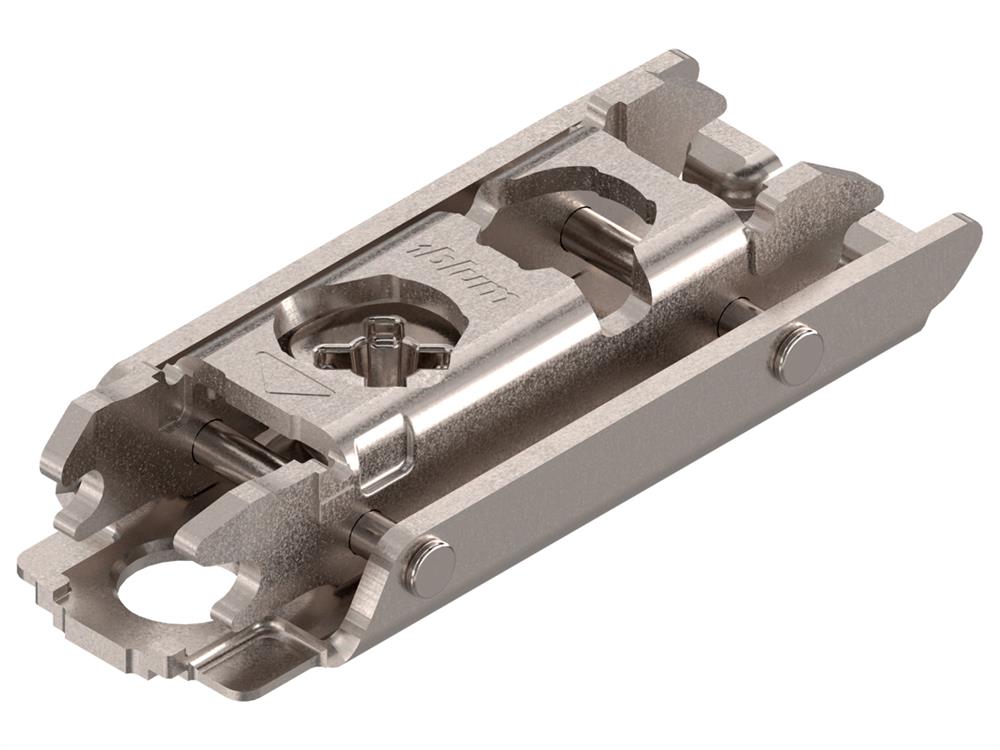

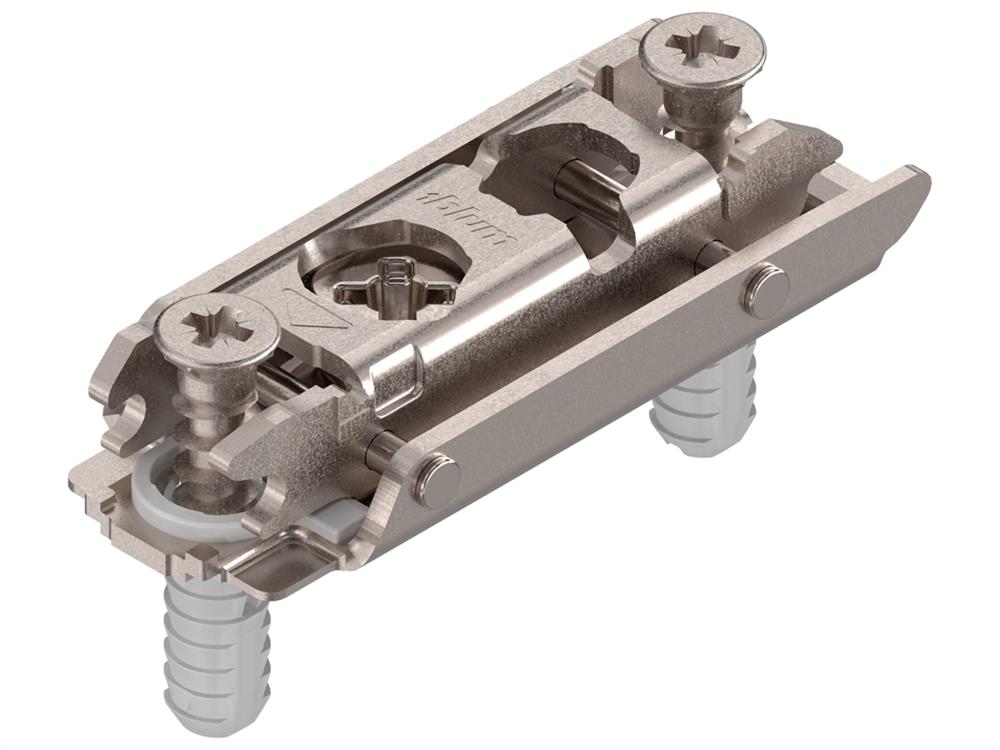

Blum 0mm Steel Horizontal Cam Mounting Plates

Screw-On
Knock-In
Expando
Pre-Mounted Screws
CodeHeightTypeBox QtyPrice
175H3100
80875
Blum 0mm horizontal cam mounting plate0mmScrew-On500£POA
177H3100
14461
Blum 0mm Steel Horizontal Cam Mounting Plate0mmKnock-In500£POA
177H3100E
86885
Blum 0mm Steel Horizontal Cam Mounting Plate Expando0mmExpando500£POA
175H4100
96813

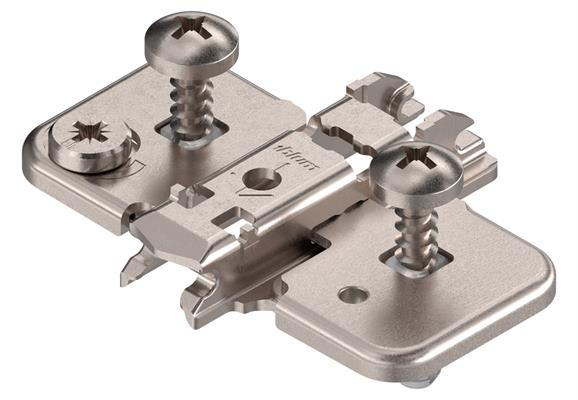

BLUM CLIP mounting plate with system screws cam adj. 0mm0mmPre-Mounted Screws500£POA

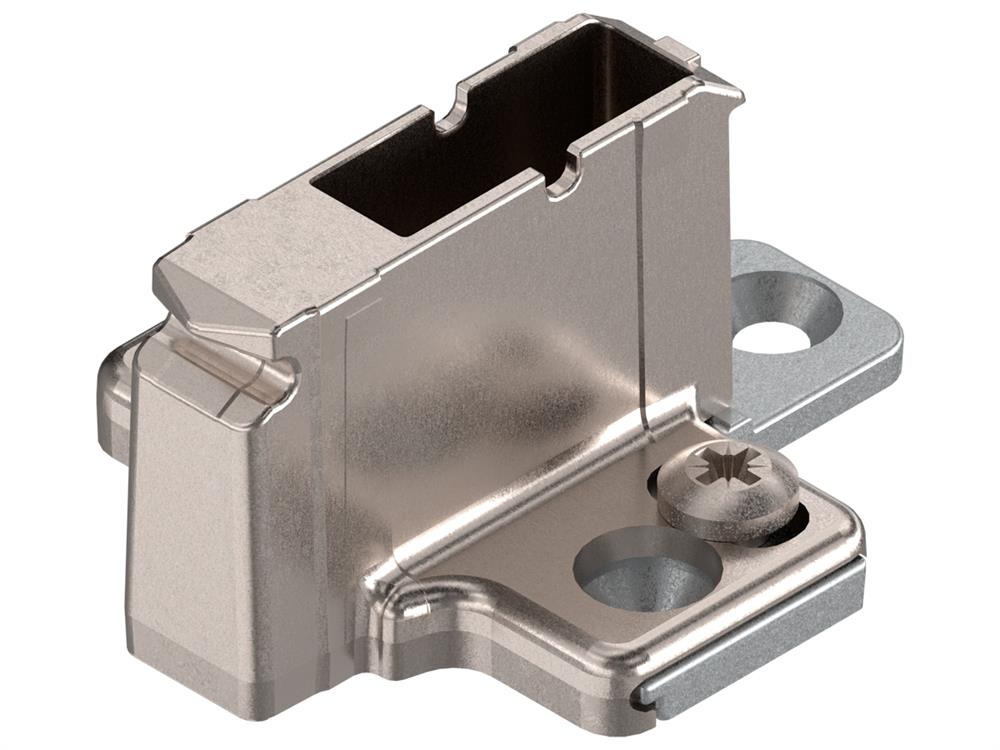

Blum Spaced Clip Backplates

For use with In-Frame door systems, nickel plated steel.

6mm
9mm
18mm
CodeHeightTypeBox QtyPrice
175H9160
51349
Blum Cruciform CLIP Mounting Plate spacing 6mm height 14.5mm6mmCruciform500£POA
175H7190
96886
Blum Cruciform Mounting Plate 9mm spacing 17.5mm height9mmCruciform250£POA
175H9190.22
97695
Blum cruciform clip top mounting plate spacing 18mm height 26.5mm18mmCruciform250£POA

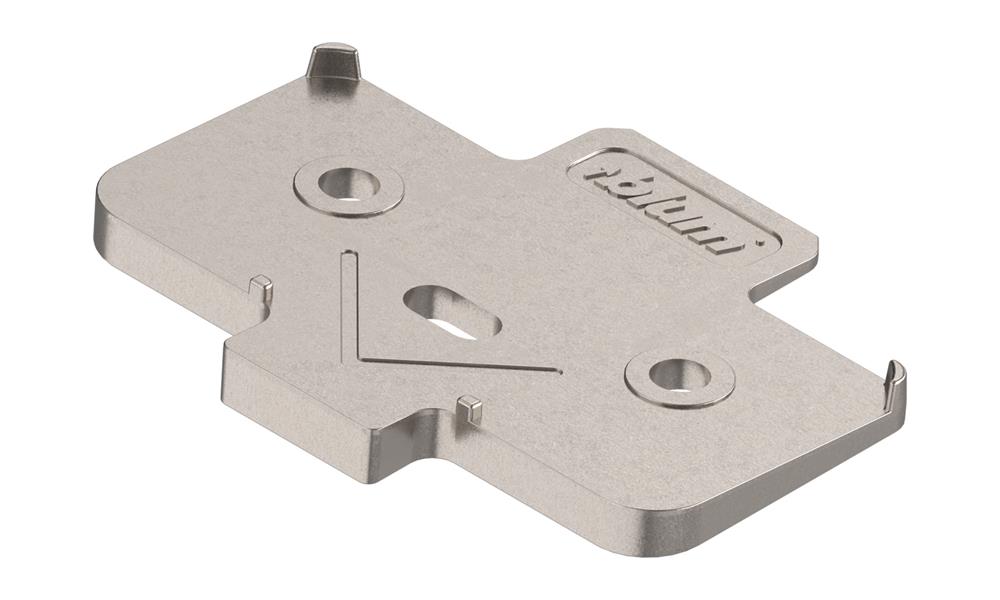

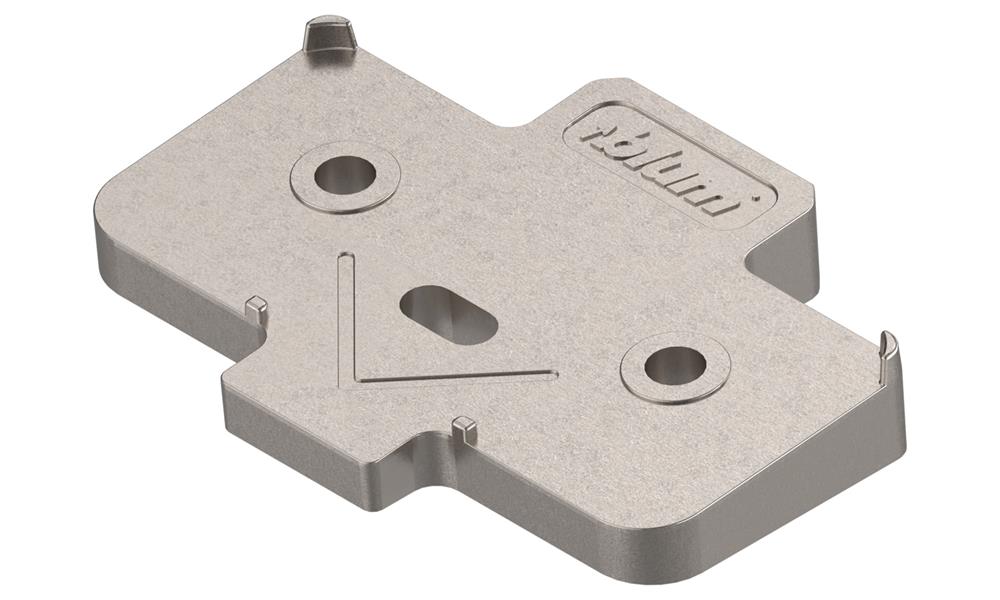

Blum Clip Angled Spacers

Can be used with standard hinges for angled applications.

-5° spacer
+5° spacer
CodeOpeningPrice
171A5500
01174
Blum Angled Cruciform Spacer -5° screw-on version 171A5500-5°£POA
171A5040
34726
Blum Angled Cruciform Spacer +5° screw-on version 171A5040+5°£POA
