All Products > Blum > Blum Lift Systems > Blum Aventos HK-S

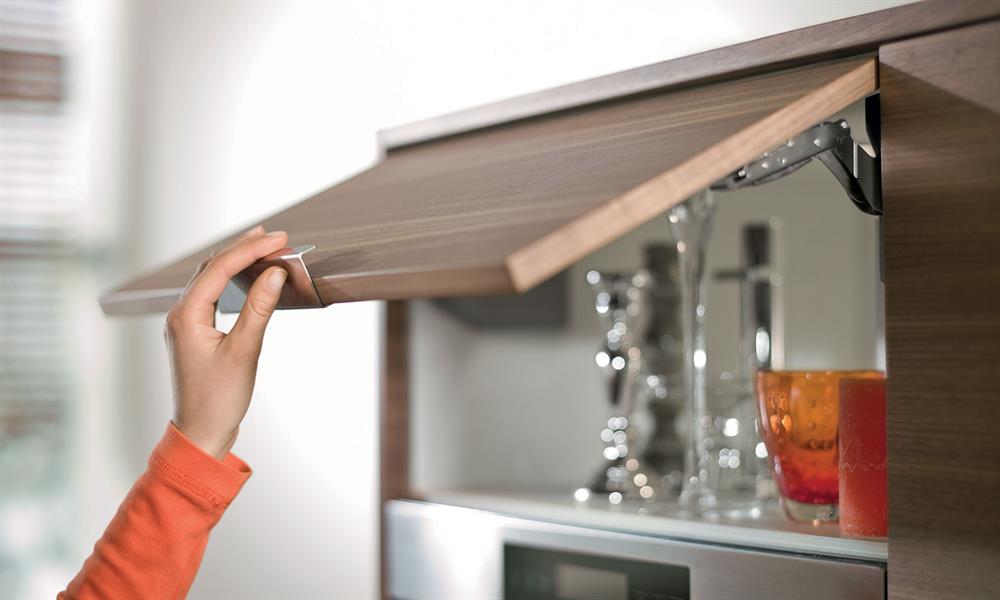

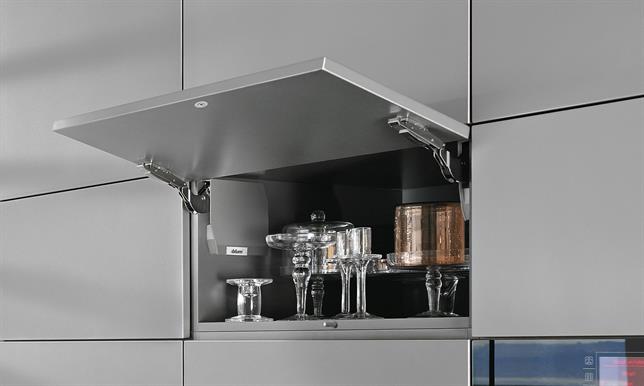

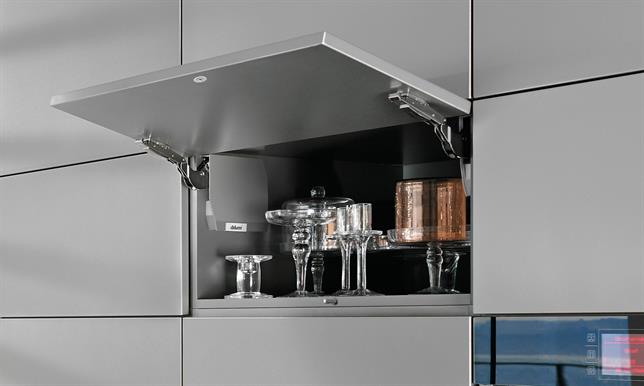

Blum Aventos HK-S

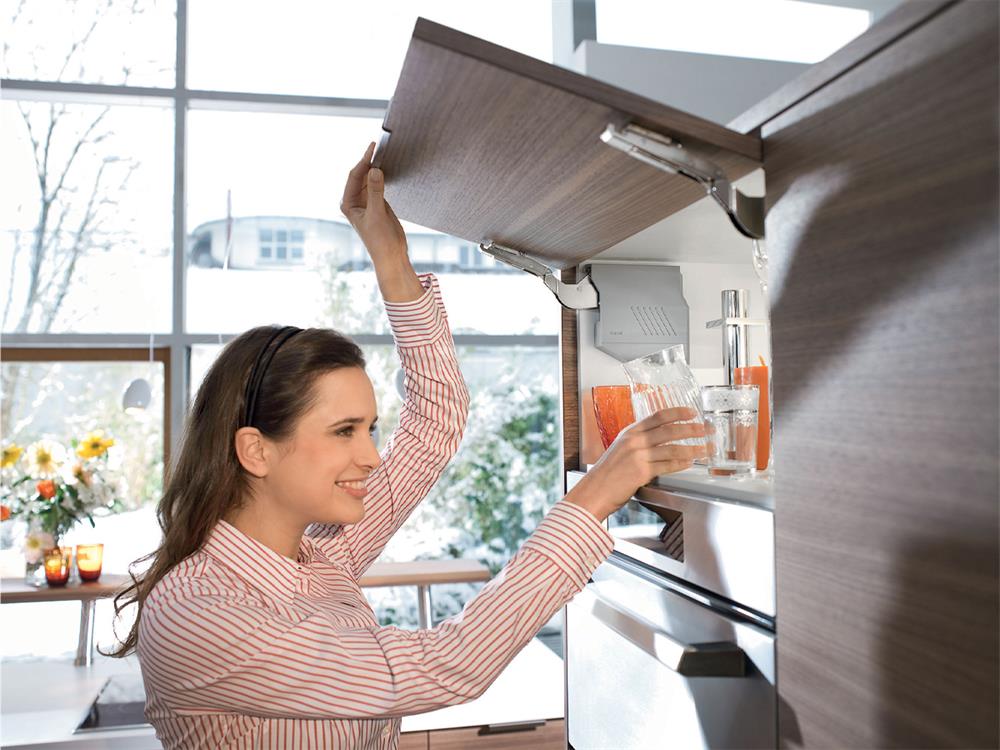

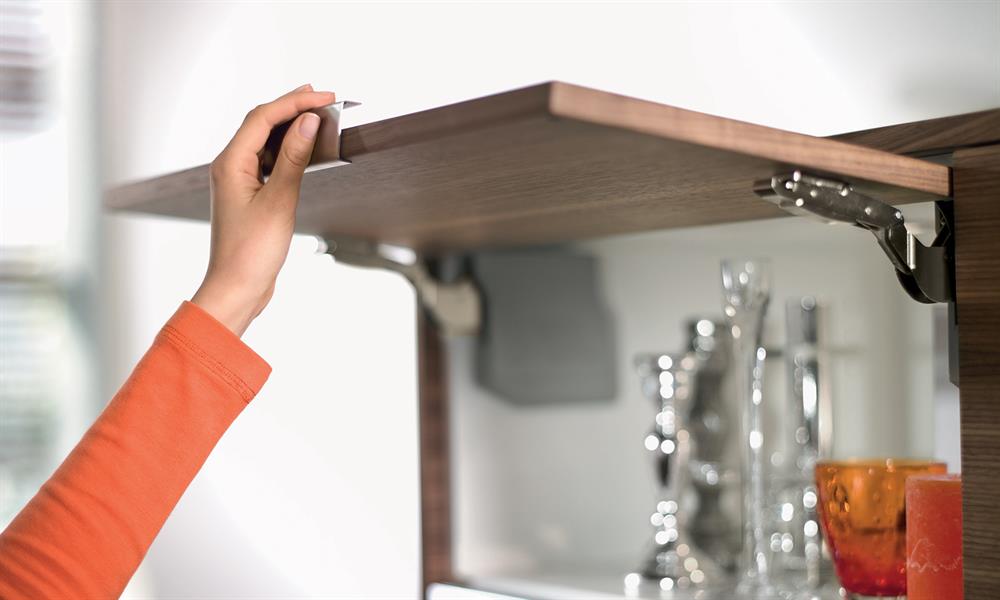

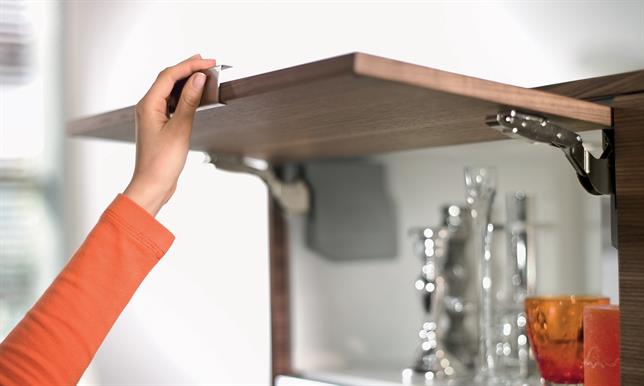

AVENTOS HK-S is the right solution for small wall cabinets and for fitted units, e.g. above larder units or refrigerators. The fitting fits snugly into small furniture and ideally rounds off the existing programme of AVENTOS lift systems.

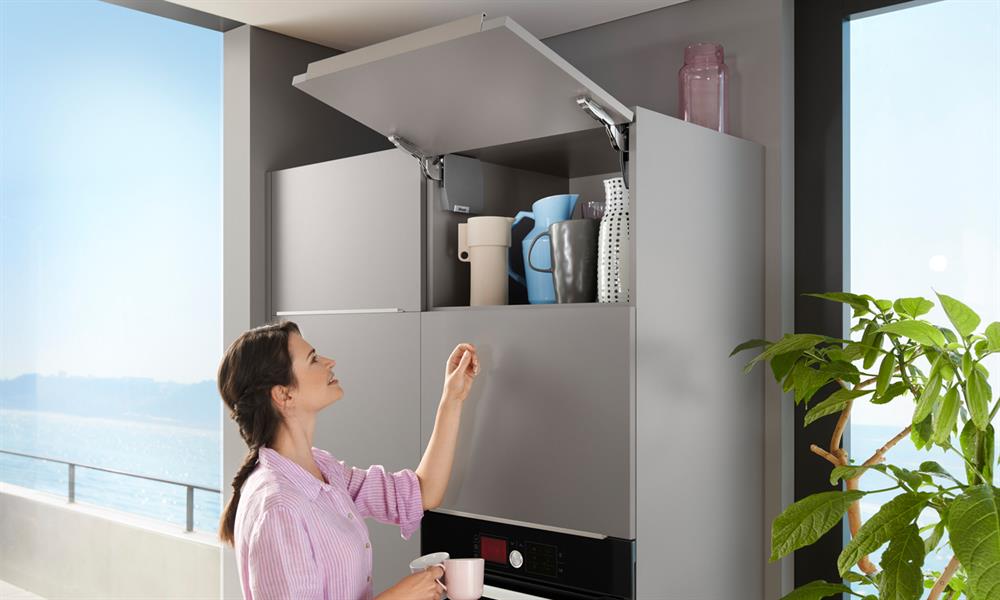

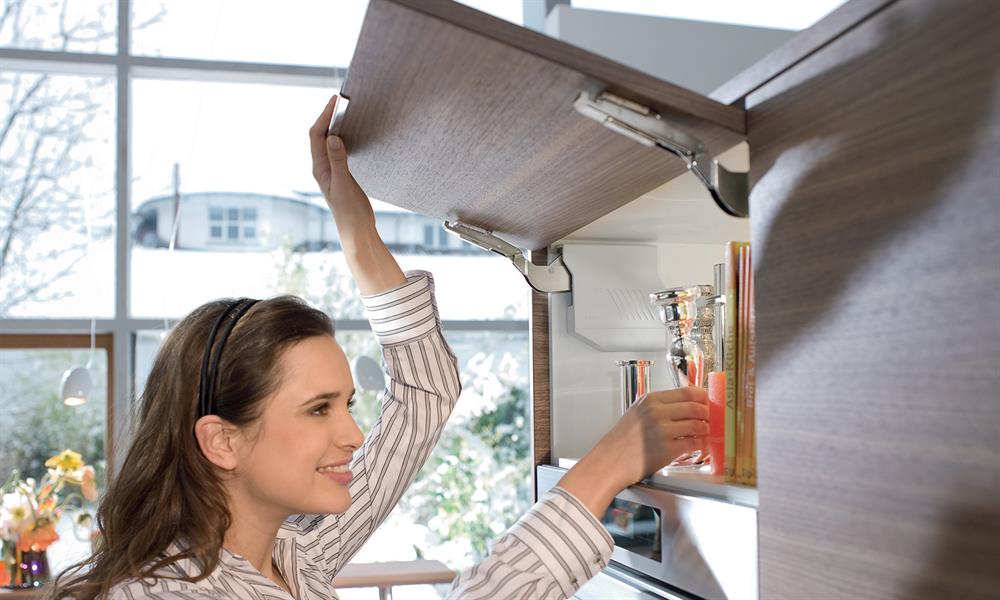

AVENTOS HK-S offers freedom of design for small wall cabinets above refrigerators or larder units.

Cabinet heights up to a max. of 600 mm

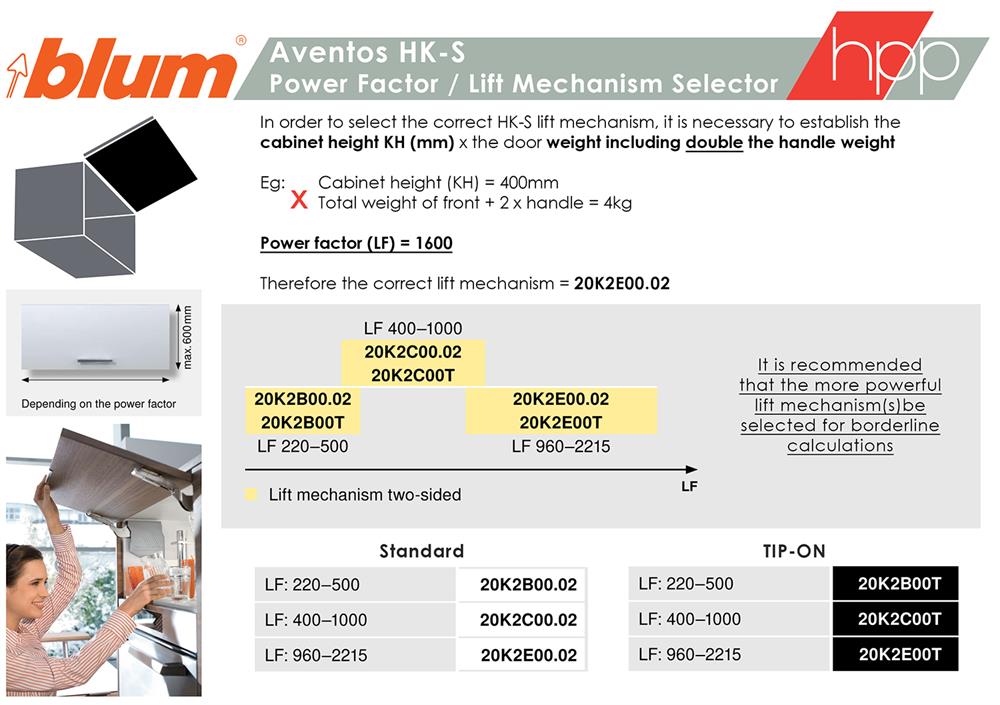

Cabinet widths depend on the power factor
3 lift mechanism types
Can be used with cornice and crown mouldings
Lift mechanisms and front fixing brackets can be used symmetrically
For wooden and aluminium frame fronts

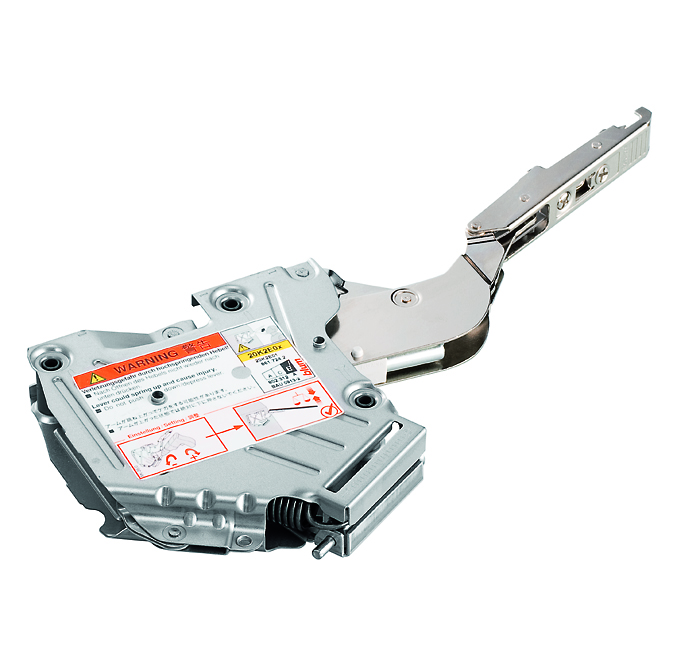

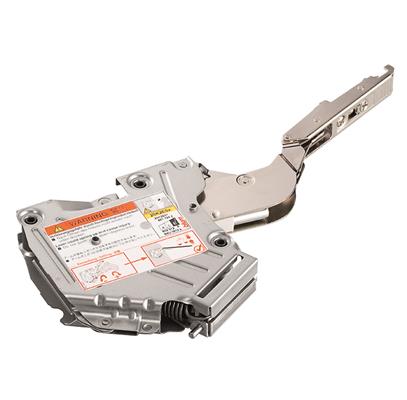

Blum Aventos HK-S Lifts

Ideal for low cabinet height wall units and top frontals in appliance housings (over ovens, fridges etc.).

Two required per installation. An installation must include at least one 20K2C01 or 20K2E01.

Code	Power Factor
20K2A01 39512Blum Aventos HK-S lift mechanism (each, 2 mechanisms required) (Unsprung)	Unsprung	£POA ex vat
20K2C01 23512Blum Aventos HK-S lift mechanism (each 2 mechanisms required) (Medium lift)	Medium	£POA ex vat
20K2E01 11231Blum Aventos HK-S lift mechanism (each 2 mechanisms required) (Heavy lift)	Heavy	£POA ex vat

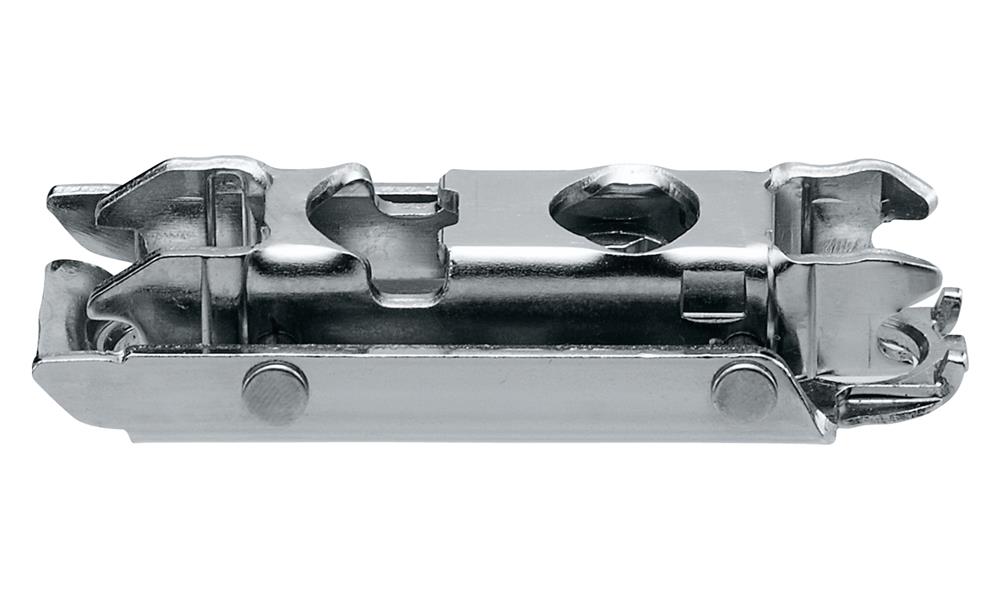

Blum Aventos HK-S Front Fixing Plate

For wooden fronted installations.

	Code	Height	Type	Box Qty
	175H3100 80875Blum 0mm horizontal cam mounting plate	0mm	Horizontal Screw-On	500	£POA ex vat

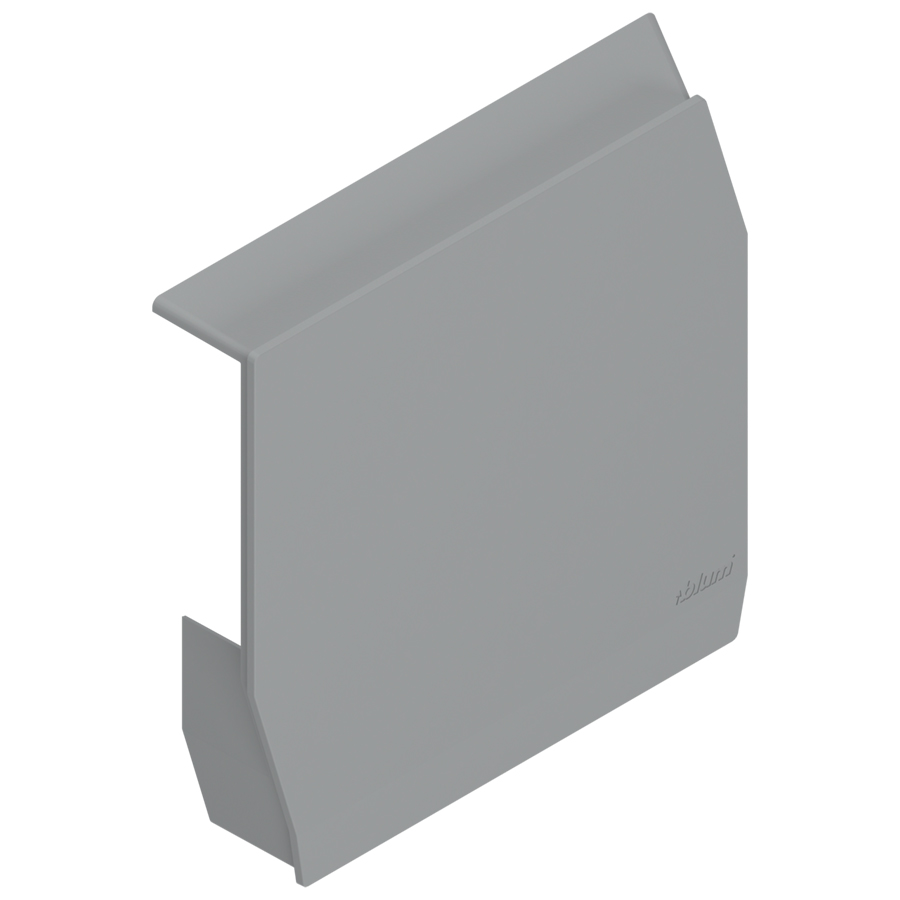

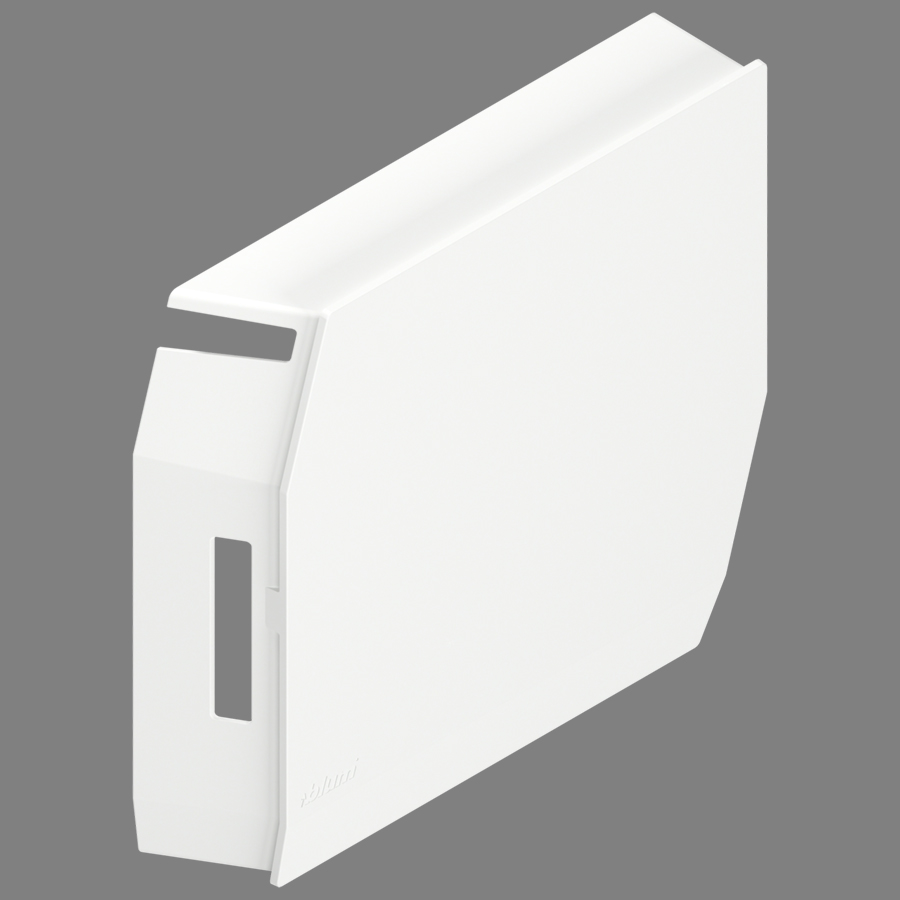

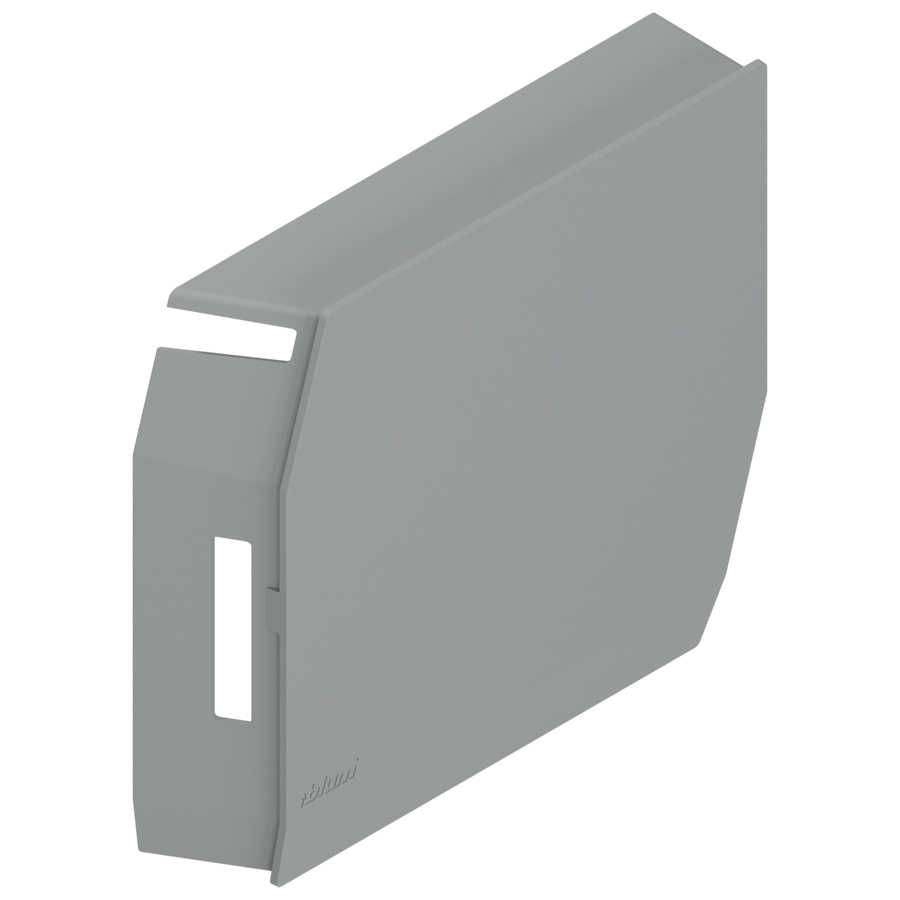

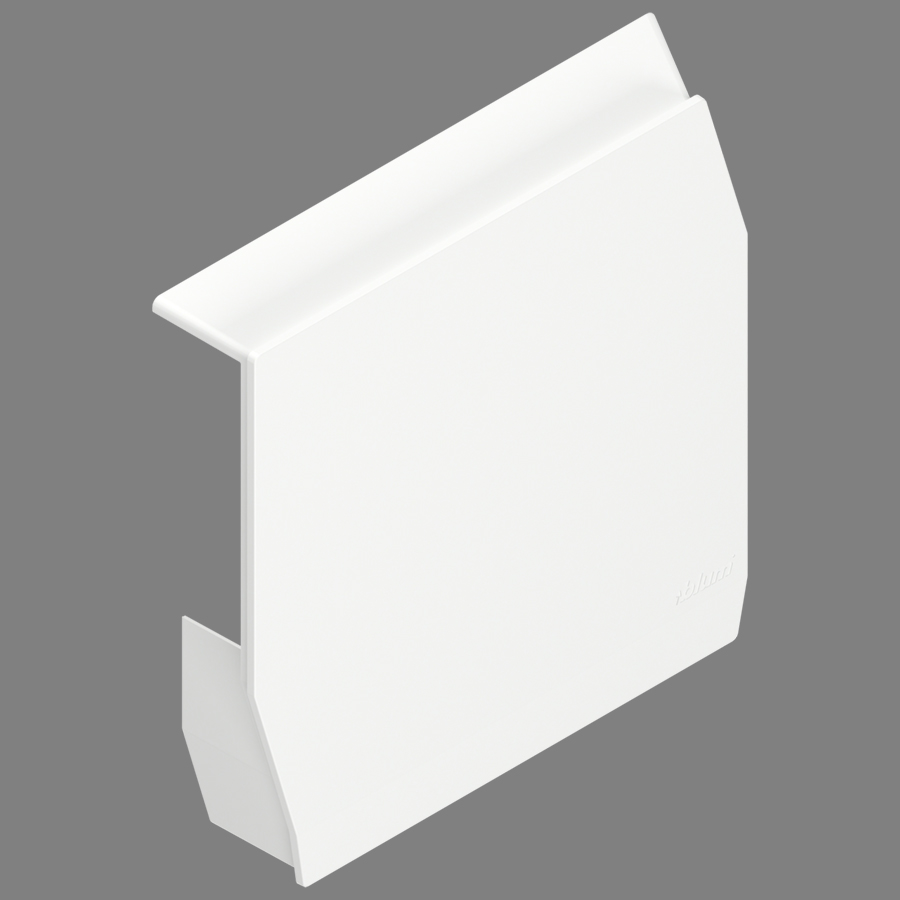

Blum Aventos HK-S Cover Caps

Available individually.

Code	Colour	Hand
20K8A21LHG 52006Blum Aventos HK-S cover cap for lift mechanism grey LH	Grey	Left	£POA ex vat
20K8A21RHG 04872Blum Aventos HK-S cover cap for lift mechanism grey RH	Grey	Right	£POA ex vat
20K8A21LHSW 75543Blum Aventos HK-S cover cap for lift mechanism silk white LH	Silk White	Left	£POA ex vat
20K8A21RHSW 88617Blum Aventos HK-S cover cap for lift mechanism silk white RH	Silk White	Right	£POA ex vat

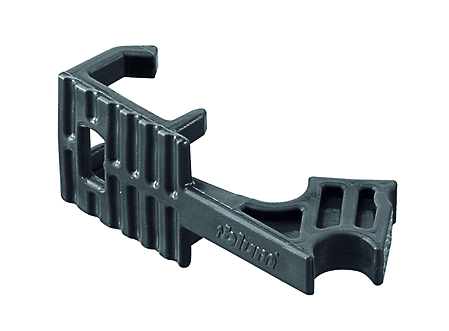

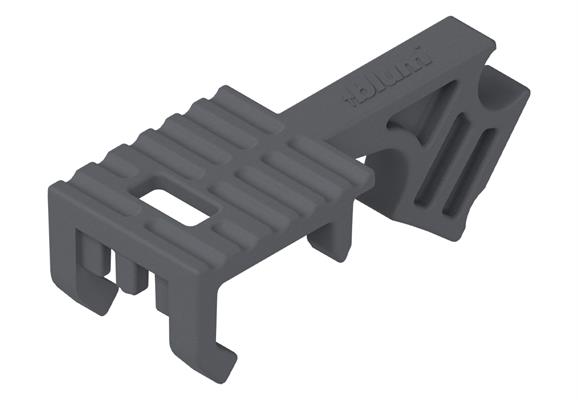

Blum Aventos HK-S Restrictor

Used to restrict the opening angle of Aventos HK-S.

	Code	Angle
	20K7A11 21838Blum Aventos HK-S restrictor 75 deg	75°	£POA ex vat

Blum Aventos HK-S Tip-On Lifts

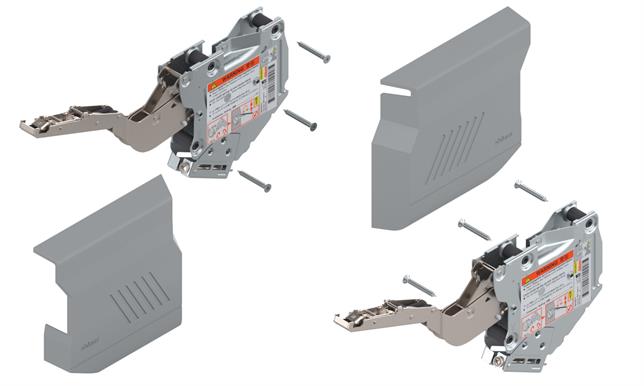

Tip-On lifts are sold in pairs and include 1x LH/1x RH cover cap, plus fixing screws. To complete the full installation fixing plates and a Tip-On set are required.

	Code	Tip-On
	20K2E00T 29203Blum Aventos TIP-ON HK-S lift mechanism set (Mechanisms/covers)	Yes	£POA ex vat

Blum Aventos HK-S Front Fixing Plate

For wooden fronted installations.

	Code	Height	Type	Box Qty
	175H3100 80875Blum 0mm horizontal cam mounting plate	0mm	Horizontal Screw-On	500	£POA ex vat

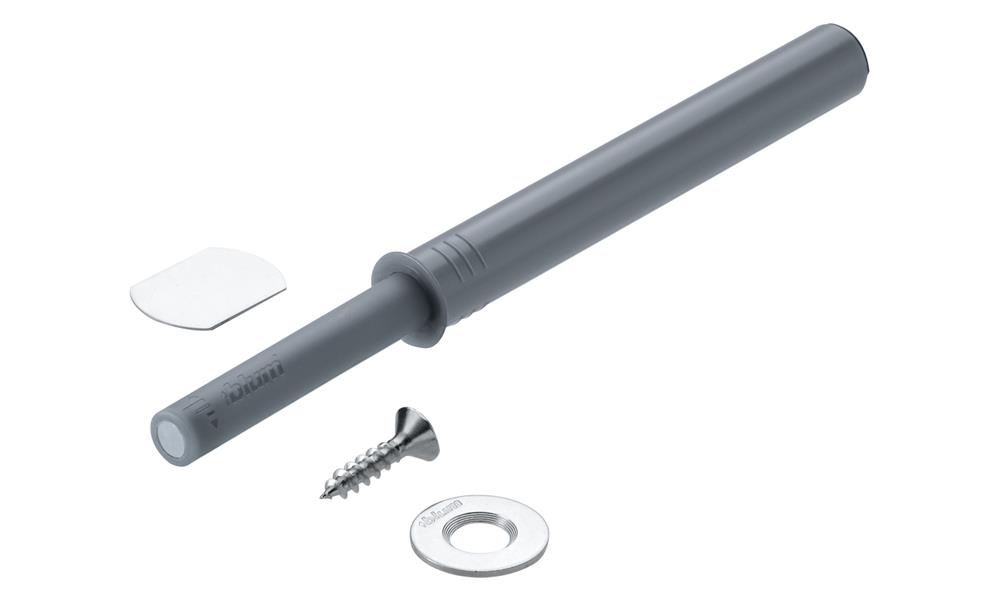

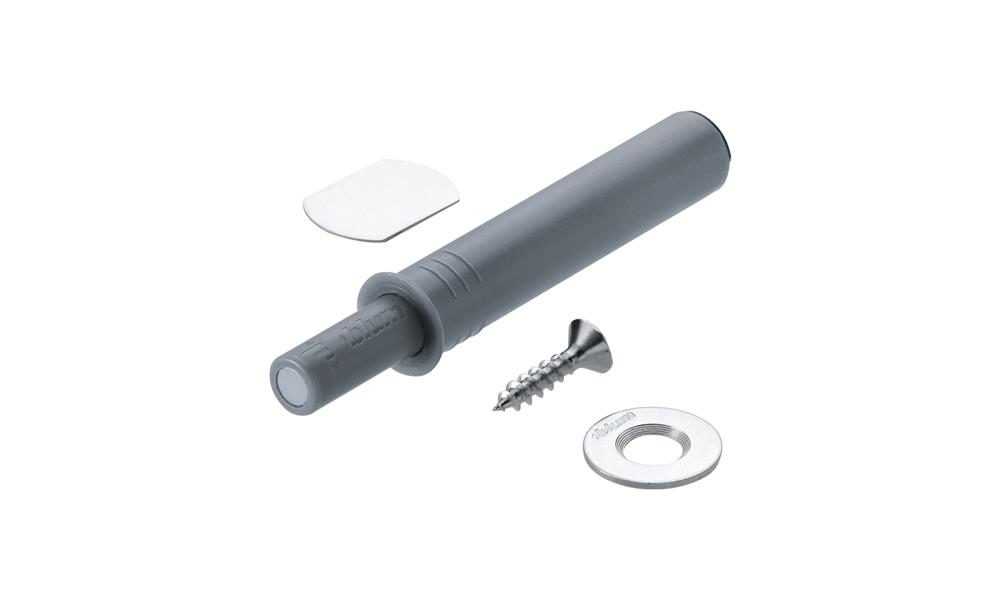

Blum Aventos HK-S Tip-On Set

For use in conjunction with an appropriate HK top Tip-On lift mechanism.

Short set for cabinet height up to 500mm
Long set for cabinet height above 500mm

	Code	Type
	956.1004 72312Blum TIP-ON for doors short version set	Short set	£POA ex vat
	956A1004 44528Blum TIP-ON for doors long version set (Magnetic)	Long set	£POA ex vat

	HK-S Technical Specifications
	HK-S Standard Applications
	HK-S Special Applications
	HK-S TIP-ON Installation
	Aventos Parts Calculator
	360x600 Cabinet Planning Example
	Aventos Calculator - Quick Version
	Watch the Aventos HK-S assembly video here
