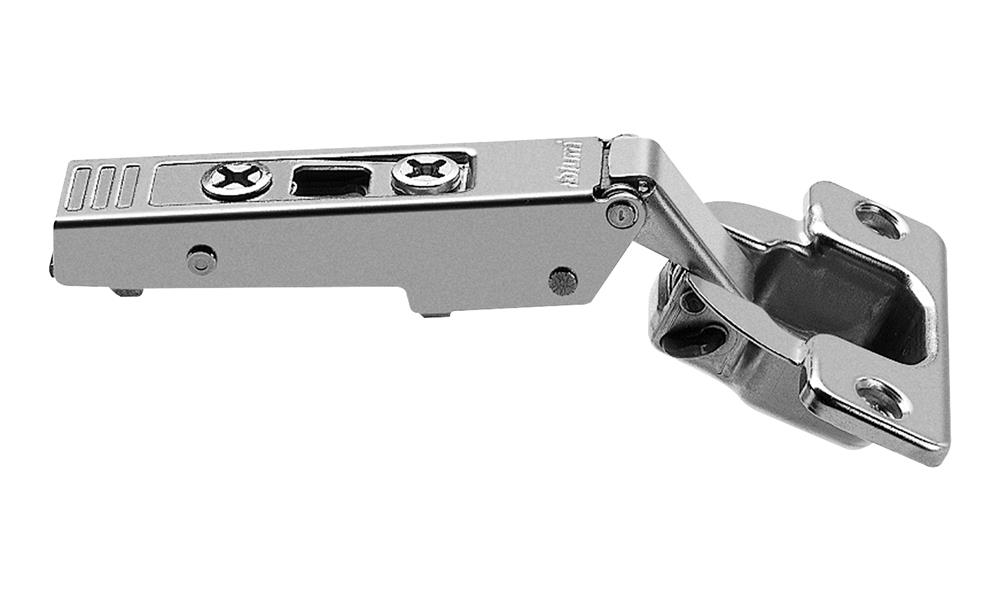

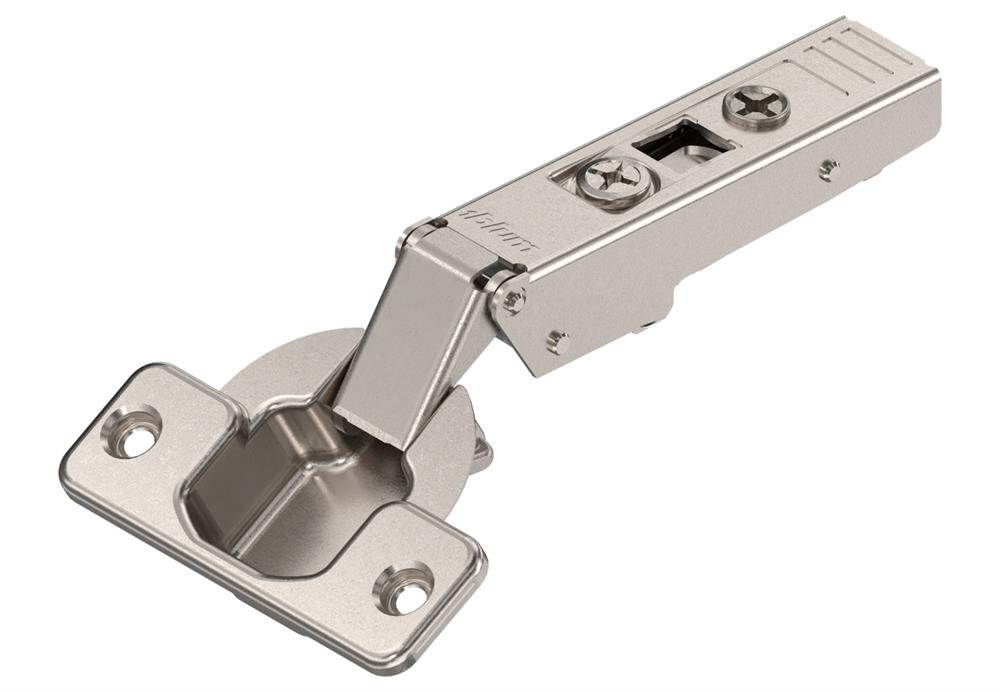

Blum Clip-top 120 degree unsprung hinge

Quick Order Code: 63107 / Product Code: 70T5550

• List Price: £POA exc. VAT
• Selling Unit: EACH
• Please log in for your custom prices, stock info, offers and much more.
• Don't have an account? Click here to learn how to apply for yours.

Rating: 4.3 / 5 - 3 Rating(s)

Opening	120
Boss	Screw on
Finish	Nickel
Overlay	Full
Closing Mechanism	Unsprung
Box Qty	50

Additional Features / Properties

Cover cap type	90M2503
Type of side adjustment	With screw
Type of depth adjustment	convenient with spiral screw
Item package	1 piece
Maximum drilling distance	6 mm
Minimum drilling distance	3 mm
Fixed dimension / factory setting	11 mm
Weight	683.4 kg
collision measurement (hinge arm height)	20.5 mm
Cranking	Overlay application
Country of origin	AT
Delivery unit	50
Height Outside carton	32.7 cm
Layer quantity	2000
Lenght Outside carton	55.6 cm
Palette height without transport equipment	98 cm
Pallet quantity	6000
Replenishment lead time	11 day
Transport time	2 day
Volume/1000	148.96 dm³
Weight (tare)/1000	6.032 kg
Width Outside carton	19.9 cm
hinge variant	with free movement for TIP-ON
mounting plate system	CLIP
Colour/surface	Nickel plated
Opening angle	120
Closing mechanism	unsprung
SAP-Distribution status	20 - On sale
SAP - Program allocation	NS - Non Standard Program
Side adjustment	+/- 2 mm mm
Depth adjustment	+ 3/- 2 mm mm
Boss assembly	screw-on
Boss material	Steel boss
boss finish	Nickel plated
Boss adjustment	none
door material	Wood
Gap	1.5 mm
Weight based on	10000 Piece
application	standard hinge
packaging	Commercial packing
Packaging unit 1	50
Packaging unit 2	250
Packaging unit 3	0
Customs tariff number	8302100090
