Blum Clip Top 170 degree hinge Unsprung - HPP

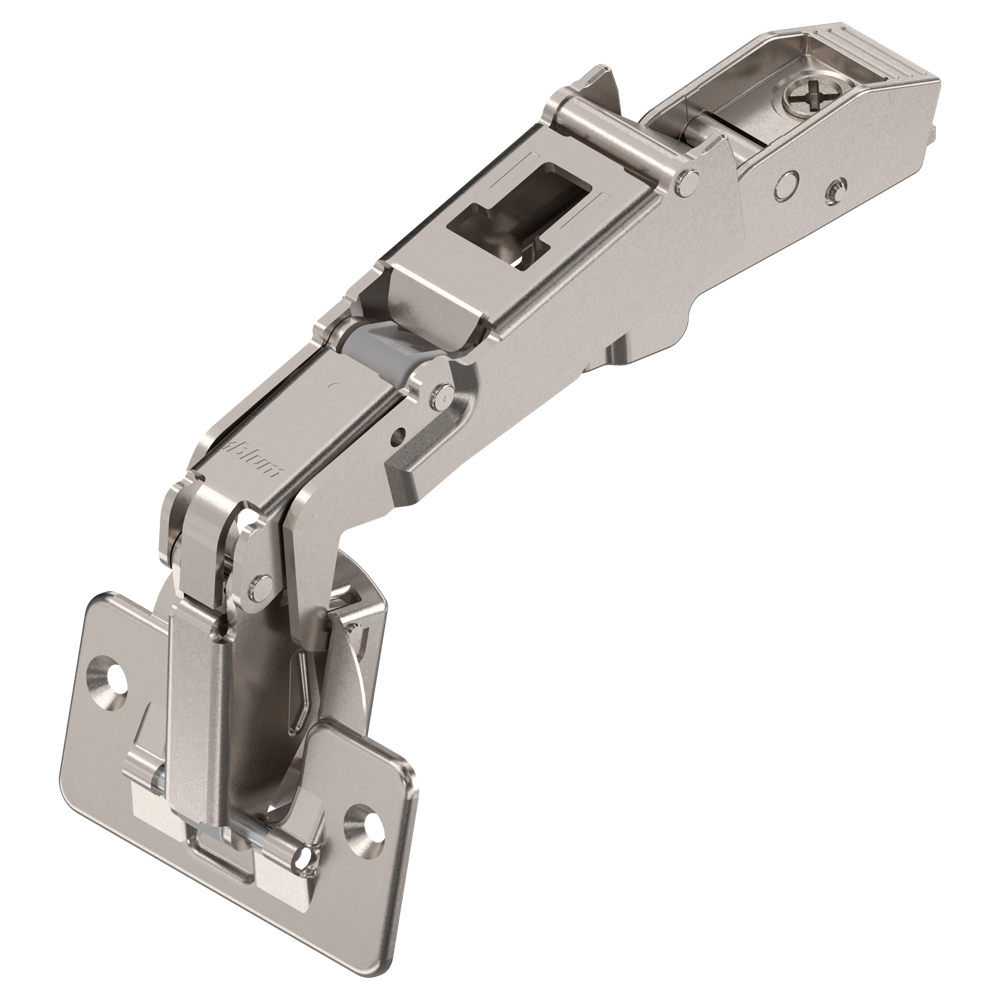

Blum Clip Top 170 degree hinge Unsprung

Quick Order Code: 94017 / Product Code: 70T6550

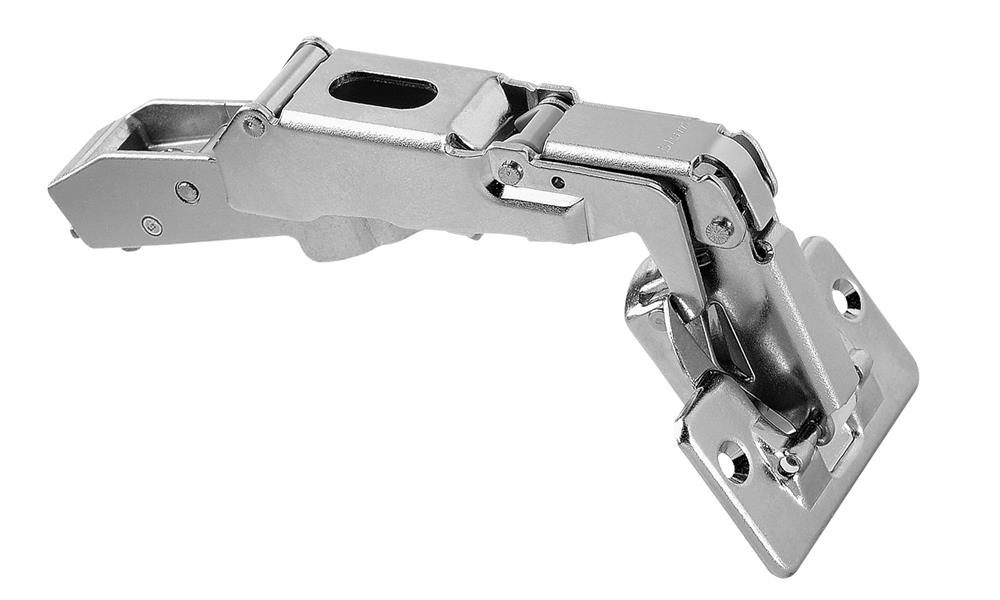

Product 70t6550 main image
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.3 / 5 - 3 Rating(s)

WARNING: If you are using the this hinge in furniture that can be accessed by small children it should be noted that it is possible for small fingers to get in-between the working mechanism of the hinge. In these cases a 155° hinge could be used as an alternative or all relevant doors should be fitted with child safety latches. This warning should be passed on subsequent users of the product.

Opening170
FinishNickel
BossScrew on
OverlayFull
Closing MechanismUnsprung
Box Qty125

Additional Features / Properties

Cover cap type80.6507
Type of side adjustmentWith screw
Type of depth adjustmentconvenient with spiral screw
Item package1 piece
Maximum drilling distance8 mm
Minimum drilling distance3 mm
Fixed dimension / factory setting11 mm
Weight1703.24 kg
collision measurement (hinge arm height)65 mm
CrankingOverlay application
Country of originAT
Delivery unit25
Height Outside carton26.4 cm
Layer quantity500
Lenght Outside carton59.7 cm
Palette height without transport equipment79 cm
Pallet quantity1500
Replenishment lead time2 day
Transport time2 day
Volume/1000480.32 dm³
Weight (tare)/100016.523 kg
Width Outside carton37.5 cm
mounting plate systemCLIP
Colour/surfaceNickel plated
Opening angle170
Closing mechanismunsprung
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Side adjustment+/- 2 mm mm
Depth adjustment+ 3/- 2 mm mm
Boss assemblyscrew-on
Boss materialSteel boss
boss finishNickel plated
Boss adjustmentnone
door materialWood
Gap1.5 mm
Weight based on10000 Piece
applicationwide angle hinge
packagingCommercial packing
Packaging unit 125
Packaging unit 2125
Packaging unit 30
Customs tariff number8302100090
