Tandem Runners with TIP-ON 17-19mm Panel Thickness

Runners for wooden drawers with a panel thickness of 17–19 mm
Concealed Tandem single (550) and full (560) extension with integrated TIP-ON for handle-less drawer opening
Low-friction cylindrical rollers ensure a feather-light glide
Tool-free height adjustment via a locking device (T51.1700.04 L+R required)
Tool-free integrated front tilt adjustment
Built-in width and depth tolerance compensation
T57.1140S TIP-ON synchronisation linkage recommended with these runners

Tandem Runners with TIP-ON 17-19mm Panel Thickness - Full Extension

Concealed Tandem full (560) extension with integrated TIP-ON for handle-less drawer opening.

Code	Runner length	Weight rating
560F3500T 82368Blum full extension 30kg tandem Tip on runner 350mm	350mm	30kg	£POA ex vat
560F4000T 16894Blum full extension 30kg tandem Tip on runner 400mm	400mm	30kg	£POA ex vat
560F4500T 61066Blum full extension 30kg tandem Tip on runner 450mm	450mm	30kg	£POA ex vat

Concealed Tandem single (550) extension with integrated TIP-ON for handle-less drawer opening.

Code	Runner length	Weight rating
550F2700T 30499Blum Tandem Tip On single extension 30kg runners 270mm (Pair)	270mm	30kg	£POA ex vat
550F3000T 52061Blum Tandem Tip On single extension 30kg runners 300mm (Pair)	300mm	30kg	£POA ex vat
550F3500T 59810Blum Tandem Tip On single extension 30kg runners 350mm (Pair)	350mm	30kg	£POA ex vat
550F4000T 26279Blum Tandem Tip On single extension 30kg runners 400mm (Pair)	400mm	30kg	£POA ex vat
550F4500T 85115Blum Tandem Tip On single extension 30kg runners 450mm (Pair)	450mm	30kg	£POA ex vat
550F5000T 08002Blum Tandem Tip On single extension 30kg runners 500mm (Pair)	500mm	30kg	£POA ex vat
550F5500T 62992Blum Tandem Tip On single extension 30kg runners 550mm (Pair)	550mm	30kg	£POA ex vat
550F6000T 30919Blum Tandem Tip On single extension 30kg runners 600mm (Pair)	600mm	30kg	£POA ex vat

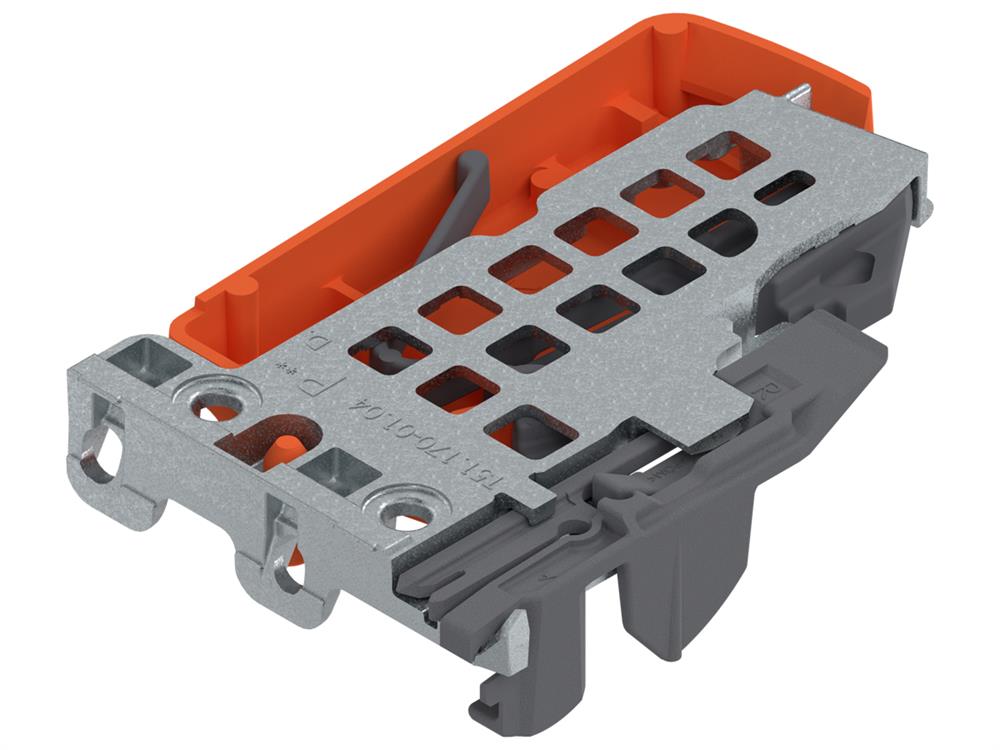

Locking device for use with 550F, 560F, 560H and 566H Tandem runners.

	Code	Hand
	T51.1700.04L 16106Blum Tandem runner front fixing bracket LH	Left	£POA ex vat
	T51.1700.04R 52784Blum Tandem runner front fixing bracket RH	Right	£POA ex vat

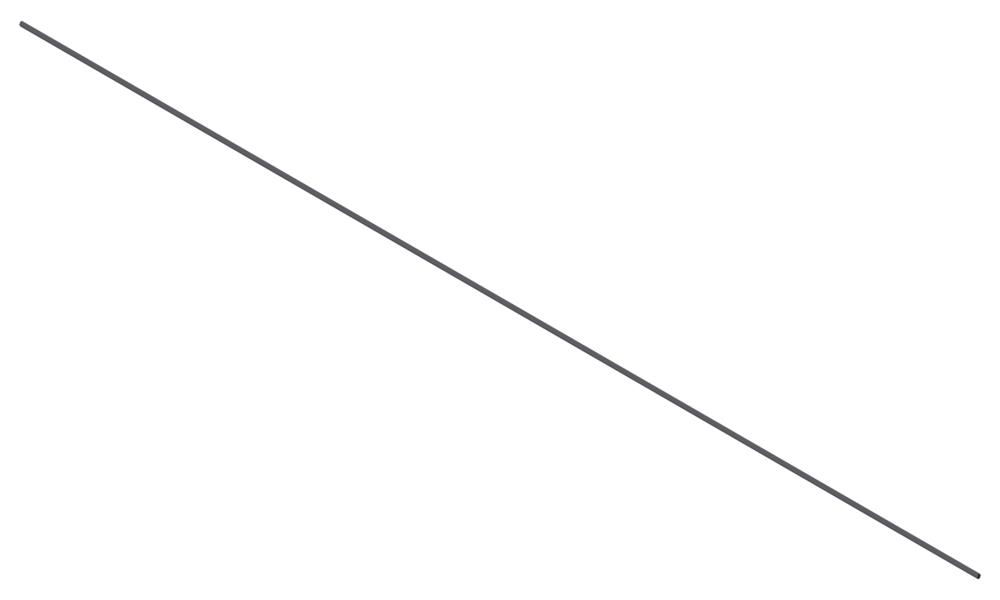

For cutting to size.

	Code	Length
	T57.1140S 28476Blum TIP-ON synchronisation linkage Length=1140mm TANDEM for cutting to size gry	1140mm	£POA ex vat
