Legrabox Blumotion and Tip-On F-Height Drawers

Legrabox Blumotion and Tip-On F-Height Drawers
  • Legrabox Blumotion and Tip-On F-Height Drawers image 1
  • Legrabox Blumotion and Tip-On F-Height Drawers image 2
  • Legrabox Blumotion and Tip-On F-Height Drawers image 3

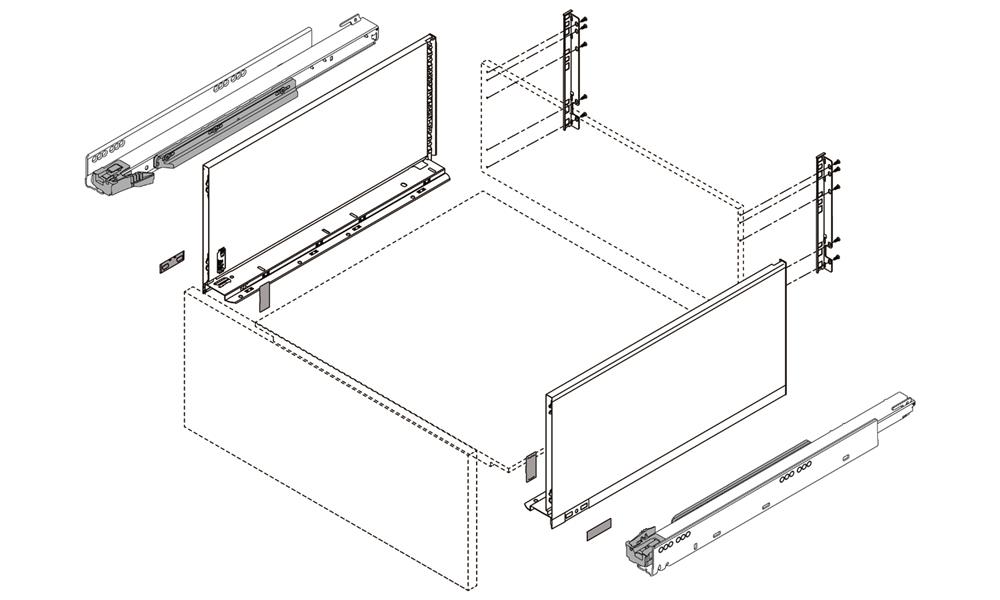

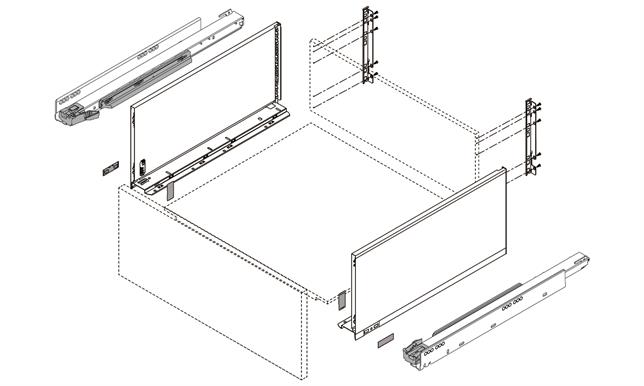

Sets Include:

  • Blumotion runners (Tip-On compatible when used with the relevant latch set & synchro linkage)
  • Drawer sides
  • Rear fixing brackets
  • Legrabox cover caps

Two M height and two C height front fixing brackets are required per drawer.

Read More...
CodeFinishDepthWeight RatingRunnersHeight
LEGRA.400F.40B.CB
12324
Blum Legrabox with Blumotion F height 400mm carbon black (40kg)
Carbon Black400mm70kgBlumotion241mm£POA  ex vat
LEGRA.450F.40B.CB
89479
Blum Legrabox with Blumotion F height 450mm carbon black (40kg)
Carbon Black450mm40kgBlumotion241mm£POA  ex vat
LEGRA.450F.70B.CB
06079
Blum Legrabox with Blumotion F height 450mm carbon black (70kg)
Carbon Black450mm70kgBlumotion241mm£POA  ex vat
LEGRA.500F.40B.CB
32271
Blum Legrabox with Blumotion F height 500mm carbon black (40kg)
Carbon Black500mm40kgBlumotion241mm£POA  ex vat
LEGRA.500F.70B.CB
67253
Blum Legrabox with Blumotion F height 500mm carbon black (70kg)
Carbon Black500mm70kgBlumotion241mm£POA  ex vat
LEGRA.400F.40B.OG
39327
Blum Legrabox with Blumotion F height 400mm orion grey (40kg)
Orion Grey400mm40kgBlumotion241mm£POA  ex vat
LEGRA.450F.40B.OG
49599
Blum Legrabox with Blumotion F height 450mm orion grey (40kg)
Orion Grey450mm40kgBlumotion241mm£POA  ex vat
LEGRA.450F.70B.OG
21834
Blum Legrabox with Blumotion F height 450mm orion grey (70kg)
Orion Grey450mm70kgBlumotion241mm£POA  ex vat
LEGRA.500F.40B.OG
47101
Blum Legrabox with Blumotion F height 500mm orion grey (40kg)
Orion Grey500mm40kgBlumotion241mm£POA  ex vat
LEGRA.500F.70B.OG
60802
Blum Legrabox with Blumotion F height 500mm orion grey (70kg)
Orion Grey500mm70kgBlumotion241mm£POA  ex vat
LEGRA.450F.40B.SS
60233
Blum Legrabox with Blumotion F height 450mm stainless steel (40kg)
Stainless Steel450mm40kgBlumotion241mm£POA  ex vat
LEGRA.450F.70B.SS
96116
Blum Legrabox with Blumotion F height 450mm stainless steel (70kg)
Stainless Steel450mm70kgBlumotion241mm£POA  ex vat
LEGRA.500F.40B.SS
59633
Blum Legrabox with Blumotion F height 500mm stainless steel (40kg)
Stainless Steel500mm40kgBlumotion241mm£POA  ex vat
LEGRA.500F.70B.SS
89597
Blum Legrabox with Blumotion F height 500mm stainless steel (70kg)
Stainless Steel500mm70kgBlumotion241mm£POA  ex vat

Legrabox Blumotion and Tip-On Unit and Latch Sets

S1 (T60L7140) unit suitable for 270mm-300mm depth drawers.

L1/L3/L5 units suitable for 350mm-650mm depth drawers.

Each set comes with a pair of Tip-On Blumotion Synchronisation Adapters; if these are to be used, a Synchronisation Linkage (T60.1125W) is required.

See the images and PDF document to identify the unit that best suits your requirements.

CodeNominal LengthWeight Range
T60L7570
57643
Blum Tip-On Blumotion Unit and Latch set L5
450mm-750mm35-70kg£POA  ex vat
T60L7540
08906
Blum Tip-On Blumotion Unit and Latch set L3
350mm-600mm15-40kg£POA  ex vat
T60L7140
50504
Blum Tip-On Blumotion Unit and Latch set S1
270mm-300mm10-20kg£POA  ex vat
T60L7340
28845
Blum Tip-On Blumotion Unit and Latch set L1
350mm-600mmLess Than 20kg£POA  ex vat

Blumotion and Tip-On Synchronisation Linkage

Required if using the supplied Synchronisation Adapters.

For cutting to size.

CodeLength
T60.1125W
29646
Blum Tip-On Blumotion Synchronisation Linkage for cutting to size
1125mm£POA  ex vat

Blumotion and Tip-On Synchronisation Adapter

Spare adapters for use with the synchronisation linkage.

CodeDescription
T60.000D
87656
Blum Tip-On Blumotion Synchronisation Adaptor
Blum Tip-On Blumotion Synchronisation Adaptor£POA  ex vat
