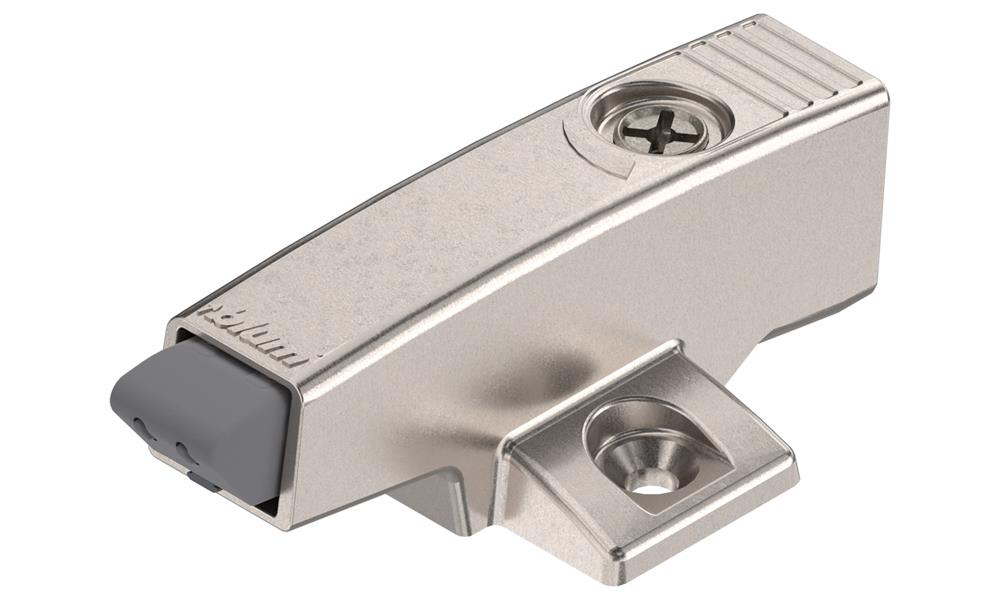

Blum hinge side carcase mounted Blumotion piston

Quick Order Code: 02296 / Product Code: 971A0500

Rating: 4.3 / 5 - 3 Rating(s)

For use with straight arm hinges and 0mm backplate (except profile door hinge: requires 3mm spacer).

Not compatible with angled cabinets: use 970A1002 or 970.1002.

Type	Cruciform hinge side

Item package	1 piece
Version	Optional part
Construction height	25 mm
Fixing method	screw-on, hinge side
Distance between fixing positions	32 mm
Weight	877 kg
Country of origin	AT
Delivery unit	25
Height Outside carton	31.4 cm
Layer quantity	1500
Lenght Outside carton	38.3 cm
Palette height without transport equipment	94 cm
Pallet quantity	4500
Replenishment lead time	2 day
Transport time	2 day
Volume/1000	190.51 dm³
Weight (tare)/1000	7.831 kg
Width Outside carton	17.3 cm
Material	steel / zinc / plastic
Fixing	for chipboard screws
Fixing positions	fixing position 1/cruciform mounting plate
Shape of mounting plate	Cruciform
Colour/surface	Nickel plated
SAP-Distribution status	20 - On sale
SAP - Program allocation	SP - Stock Program
Special feature	adjustable
Type	BLUMOTION in adapter plate
Weight based on	10000 Piece
packaging	Commercial packing
Packaging unit 1	25
Packaging unit 2	125
Packaging unit 3	0
distance cabinet front edge to first fixing position	37 mm
Customs tariff number	8302420090
