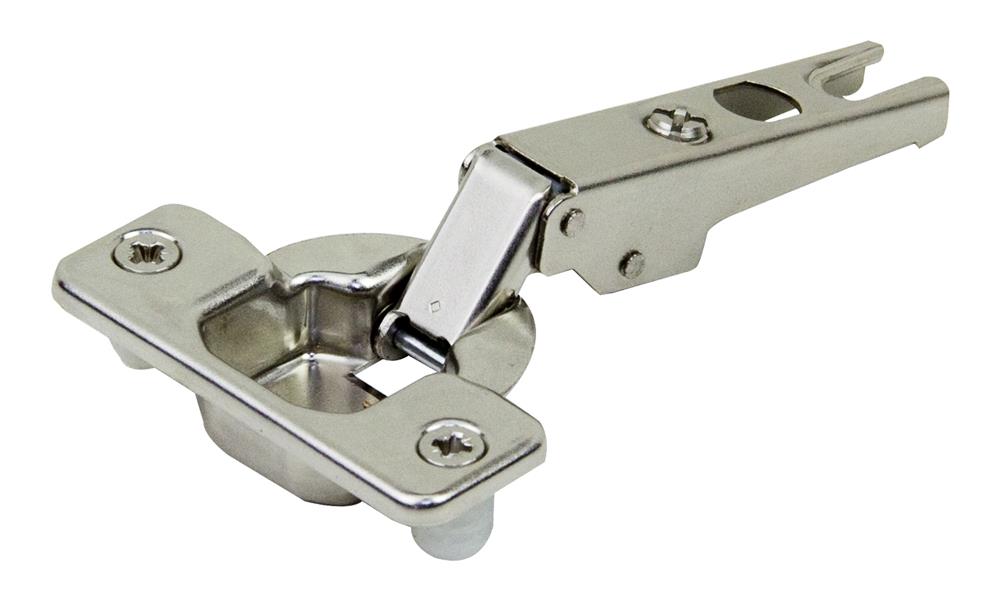

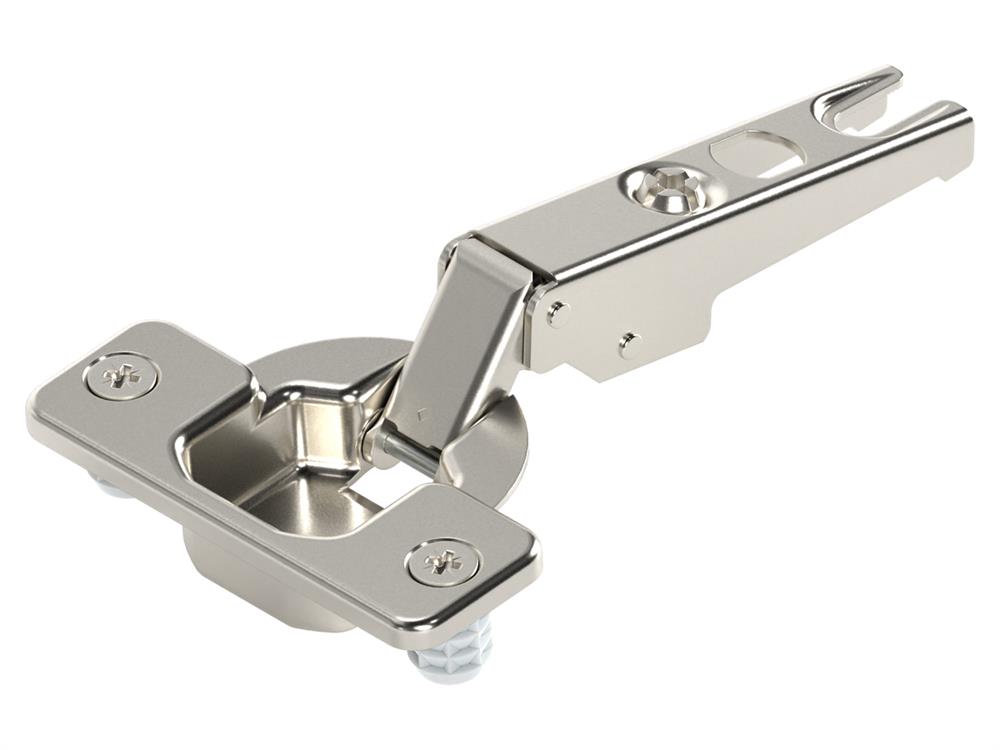

Blum 100 degree modul hinge with dowels

Quick Order Code: 59420 / Product Code: 91M2580

• List Price: £POA exc. VAT
• Selling Unit: EACH
• Please log in for your custom prices, stock info, offers and much more.
• Don't have an account? Click here to learn how to apply for yours.

Rating: 4.5 / 5 - 2 Rating(s)

• All metal hinge, nickel plated.
• 100 degree opening angle.
• Door closing mechanism (sprung).
• Slide on hinge arm.
• 3-dimensional adjustment (with suitable mounting plate).

Opening	100
Boss	Knock in- dowelled
Overlay	Full
Box Qty	250

Additional Features / Properties

Cover cap type	90M2503
Type of side adjustment	With screw
Type of depth adjustment	With screw
Item package	1 piece
diametre of fixing holes	8 mm
Maximum drilling distance	6 mm
Minimum drilling distance	3 mm
Fixed dimension / factory setting	11 mm
Weight	469.05 kg
collision measurement (hinge arm height)	20 mm
Cranking	Overlay application
Country of origin	AT
Delivery unit	250
Height Outside carton	30.8 cm
Layer quantity	3000
Lenght Outside carton	37.5 cm
Palette height without transport equipment	92 cm
Pallet quantity	9000
Replenishment lead time	11 day
Transport time	2 day
Volume/1000	93.23 dm³
Weight (tare)/1000	1.585 kg
Width Outside carton	19.9 cm
mounting plate system	MODUL
Colour/surface	Nickel plated
Opening angle	100
Closing mechanism	with spring
SAP-Distribution status	20 - On sale
SAP - Program allocation	NS - Non Standard Program
Side adjustment	+/- 2 mm mm
Depth adjustment	+/- 2 mm mm
Boss assembly	knock-in
Boss material	Steel boss
boss finish	Nickel plated
Boss adjustment	none
door material	Wood
Gap	0 mm
Weight based on	10000 Piece
application	standard hinge
packaging	industrial packing
Packaging unit 1	250
Packaging unit 2	0
Packaging unit 3	0
Customs tariff number	8302100090
