Blum full extension integrated Blumotion S Movento runner 70kg 700mm - HPP

Blum full extension integrated Blumotion S Movento runner 70kg 700mm

Quick Order Code: 89796 / Product Code: 766H7000S

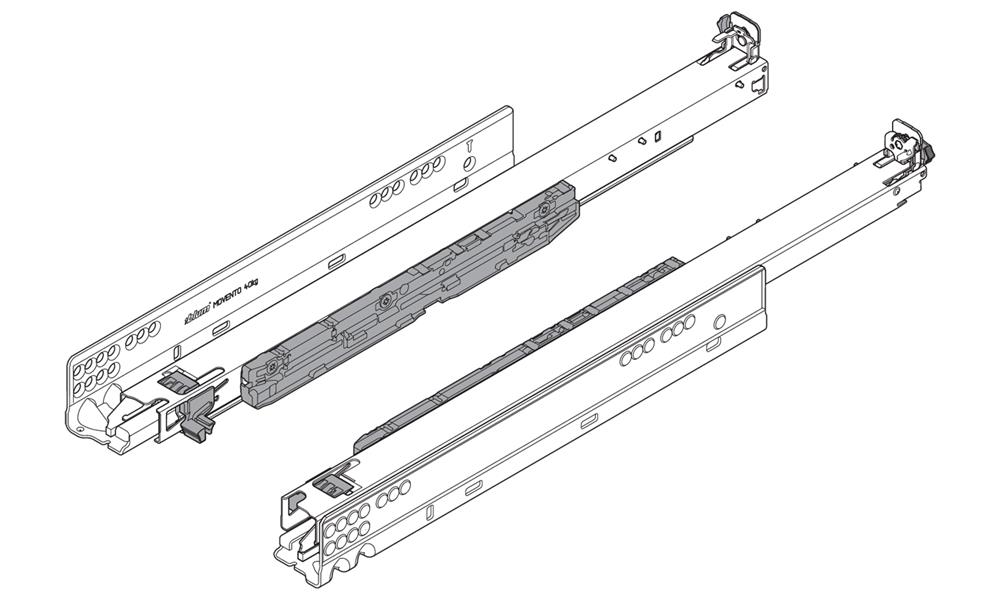

Product 766h7000s main image
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.5 / 5 - 2 Rating(s)
Length700mm
Weight Rating70kg

Additional Features / Properties

Distance of BLUMOTION and BLUMATIC279 mm
Distance of latch259.2 mm
Distance of centre profile695 mm
Assembly typeSide mounted
Item packageSet
Bearing height28.5 mm
Pull-out typeFull extension
cabinet profile fixingwith screws
Motion technologywith BLUMOTION/for TIP-ON BLUMOTION
DescriptionS-BUB
mounting width (incl. spacing)21 mm
Weight4126.65 kg
hook position (from end of runner)9 mm
cabinet profile width40.9 mm
Runner systemSynchronised roller carriage system
length of cabinet profile568.5 mm
Drawer profile width29.7 mm
dynamic load bearing60 kg
Country of originAT
Delivery unit4
Height Outside carton9.1 cm
Layer quantity8
Lenght Outside carton102.7 cm
Palette height without transport equipment100 cm
Pallet quantity88
Replenishment lead time2 day
Transport time2 day
Volume/100010909.09 dm³
Weight (tare)/1000331.439 kg
Width Outside carton37.5 cm
MaterialSteel
minimum internal cabinet depth703 mm
Furniture componentsWooden drawer
Nominal Length700 mm
Colour/surfaceZinc plated
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Shank height of cabinet profile47.5 mm
type of runner systemMOVENTO
Over extension1 mm
Weight based on1000 Piece
connection runner system with Box or drawerfor locking device
packagingMultipack
Packaging unit 14
Packaging unit 20
Packaging unit 30
Customs tariff number8302420090
Additional featuresBLUMOTION
