Blum 170 Degree Clip Top Hinge - HPP

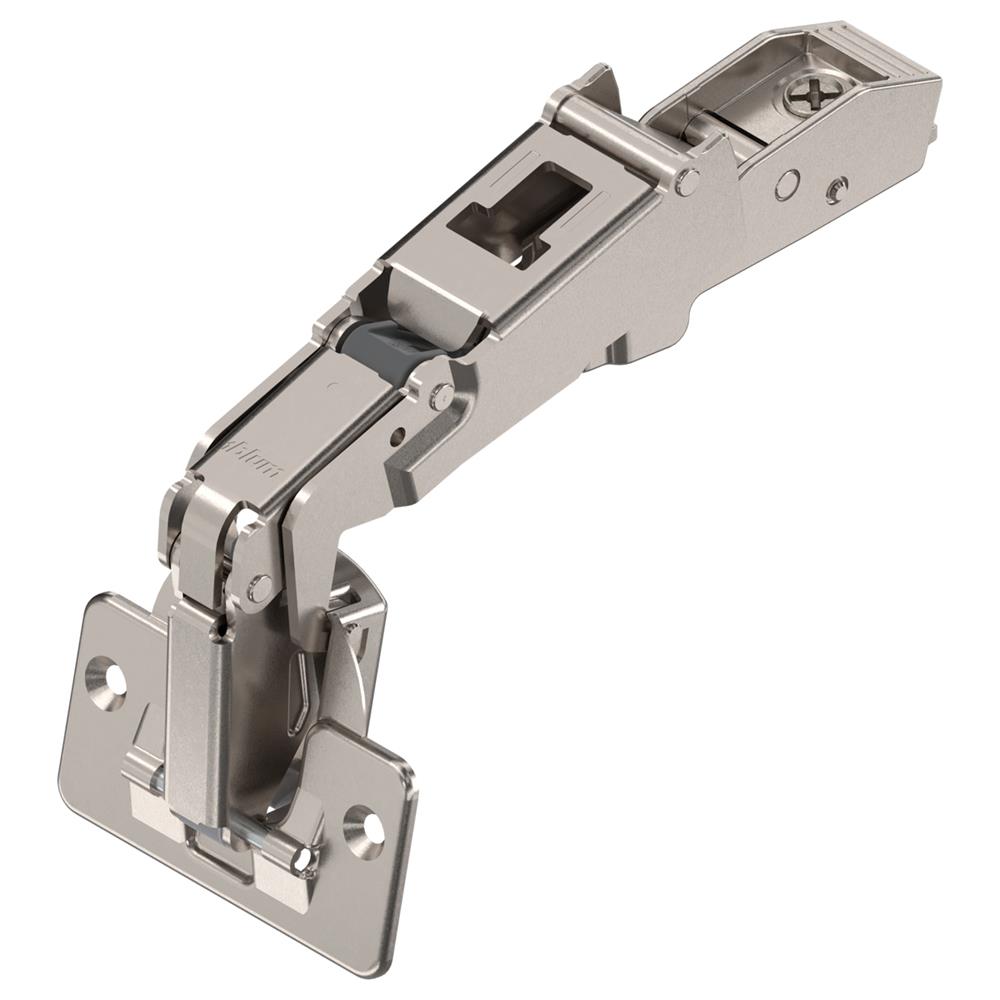

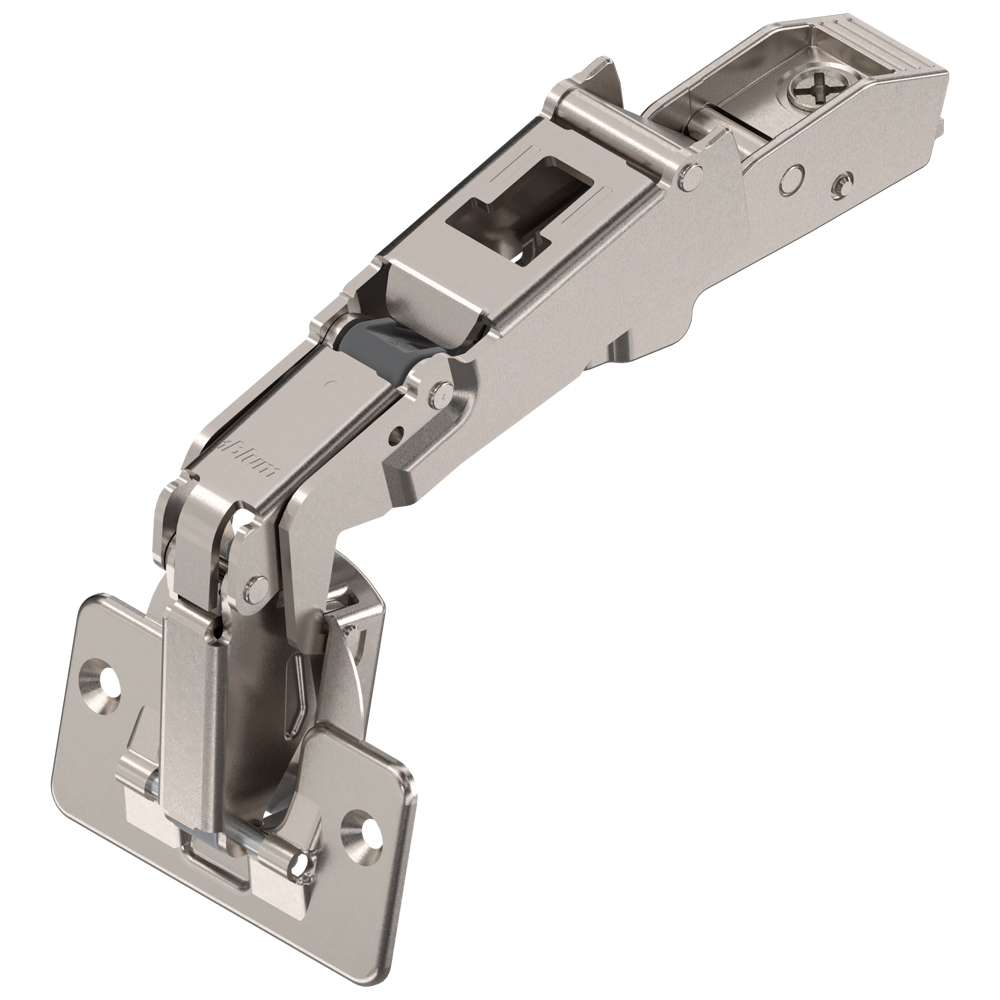

Blum 170 Degree Clip Top Hinge

Quick Order Code: 89419 / Product Code: 71T6550

Product 71t6550 main image
  • Product 71t6550 image 1
  • Product 71t6550 image 2
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.3 / 5 - 6 Rating(s)

This product is part of our Blum Bulk Buy promotion: Blum Special Offers

WARNING: If this hinge is being used in furniture that can be accessed by small children it should be noted that it is possible for small fingers to get in-between the working mechanism of the hinge. In these cases a 155° could be used as an alternative or all relevant doors should be fitted with child safety latches. This warning should be passed on subsequent users of the product.

  • All metal nickel hinge.
  • 170 degree opening angle.
  • Convenient "spiral-tech" depth adjustment.
  • Door closing mechanism (sprung).
  • Tool free door to carcase assembly and removal.
  • 3-dimensional adjustment (with suitable mounting plate)
Opening170
BossScrew on
OverlayFull
Box Qty125

Additional Features / Properties

Cover cap type80.6507
Type of side adjustmentWith screw
Type of depth adjustmentconvenient with spiral screw
Item package1 piece
Maximum drilling distance8 mm
Minimum drilling distance3 mm
Fixed dimension / factory setting11 mm
Weight1640.26 kg
collision measurement (hinge arm height)65 mm
CrankingOverlay application
Country of originAT
Delivery unit125
Height Outside carton26.4 cm
Layer quantity750
Lenght Outside carton39.8 cm
Palette height without transport equipment106 cm
Pallet quantity3000
Replenishment lead time2 day
Transport time2 day
Volume/1000322.24 dm³
Weight (tare)/10005.933 kg
Width Outside carton37.5 cm
mounting plate systemCLIP
Colour/surfaceNickel plated
Opening angle170
Closing mechanismwith spring
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Side adjustment+/- 2 mm mm
Depth adjustment+ 3/- 2 mm mm
Boss assemblyscrew-on
Boss materialSteel boss
boss finishNickel plated
Boss adjustmentnone
door materialWood
Gap1.5 mm
Weight based on10000 Piece
applicationwide angle hinge
packagingindustrial packing
Packaging unit 1125
Packaging unit 20
Packaging unit 30
Customs tariff number8302100090
