Blum 170 degree clip top INSERTA hinge overlay application

Quick Order Code: 57855 / Product Code: 71T6540B

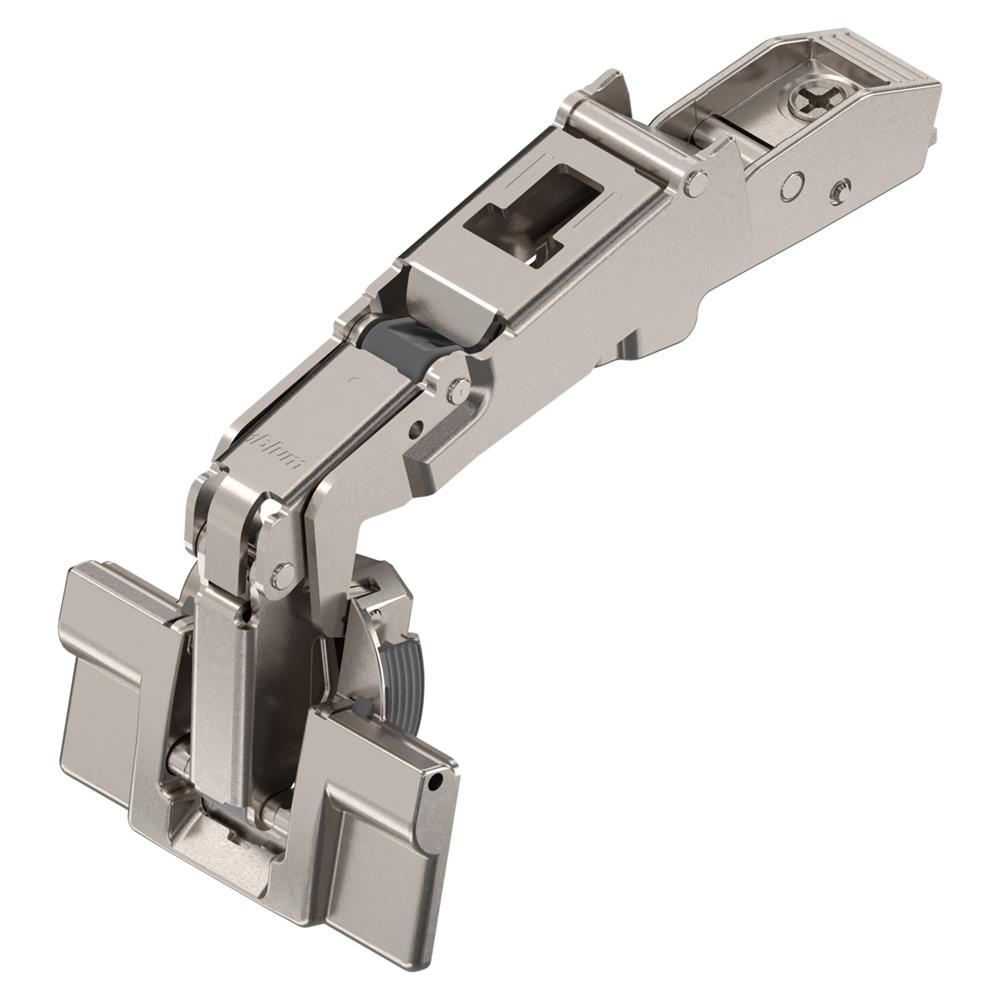

Product 71t6540b main image
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.3 / 5 - 3 Rating(s)

WARNING: If this hinge is being used in furniture that can be accessed by small children it should be noted that it is possible for small fingers to get in-between the working mechanism of the hinge. In these cases a 155° could be used as an alternative or all relevant doors should be fitted with child safety latches. This warning should be passed onto subsequent users of the product.

Opening170
BossInserta
OverlayFull

Additional Features / Properties

Cover cap type80.6507
Type of side adjustmentWith screw
Type of depth adjustmentconvenient with spiral screw
Item package1 piece
diametre of fixing holes8 mm
Maximum drilling distance8 mm
Minimum drilling distance3 mm
Fixed dimension / factory setting11 mm
Weight2036.22 kg
collision measurement (hinge arm height)65 mm
CrankingOverlay application
Country of originAT
Delivery unit125
Height Outside carton35.1 cm
Layer quantity750
Lenght Outside carton39.8 cm
Palette height without transport equipment105 cm
Pallet quantity2250
Replenishment lead time2 day
Transport time2 day
Volume/1000425.6 dm³
Weight (tare)/10006.923 kg
Width Outside carton37.5 cm
hinge variantfor BLUMOTION 973A
mounting plate systemCLIP
Colour/surfaceNickel plated
Opening angle170
Closing mechanismwith spring
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Side adjustment+/- 2 mm mm
Depth adjustment+ 3/- 2 mm mm
Boss assemblyINSERTA
Boss materialZinc boss
boss finishNickel plated
Boss adjustmentnone
door materialWood
Gap1.5 mm
Weight based on10000 Piece
applicationwide angle hinge
packagingindustrial packing
Packaging unit 1125
Packaging unit 20
Packaging unit 30
Customs tariff number8302100090
