Blum cream metabox drawer 500 x 86mm - HPP

Blum cream metabox drawer 500 x 86mm

Quick Order Code: 43913 / Product Code: 320M5000C

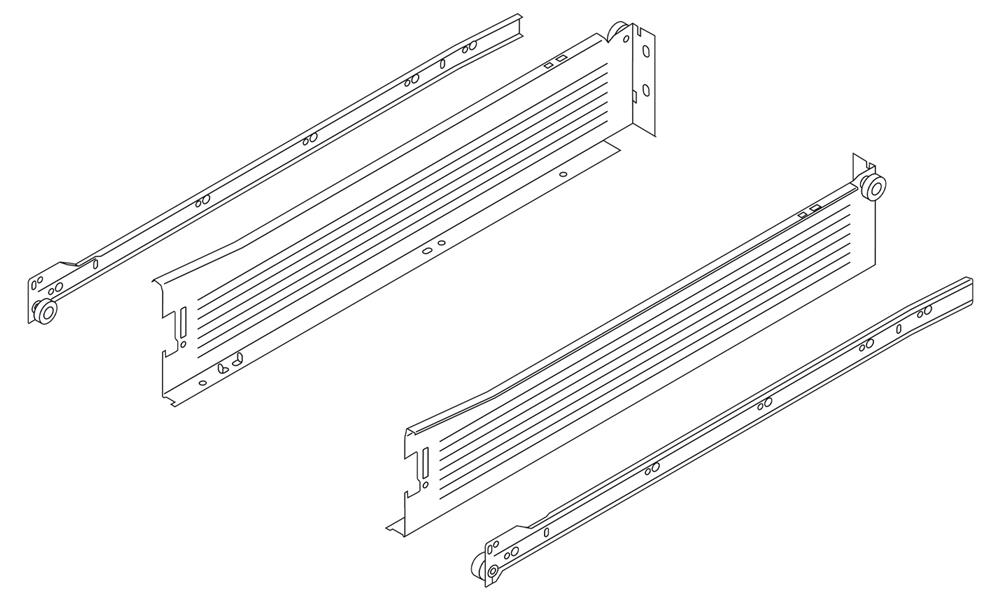

Product 320m5000c main image
  • Product 320m5000c image 1
  • Product 320m5000c image 2
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.2 / 5 - 5 Rating(s)

Metabox caters for almost every conceivable application. Steel sides, high impact runners and 25kg load bearing make it a real all-rounder. Two front fixing brackets are required per drawer.

Depth500mm
ExtensionSingle
Height86mm
FinishCream

Additional Features / Properties

Item packageSet
drawer typeSingle extension
Pull-out typeSingle extension
stay-open stopYes
cabinet profile fixingwith screws
drawer side/drawer profile fixingscrew-on vers.
DesignC
Finish cabinet profileRAL 9001 cream
finish drawer side/drawer profileRAL 9001 cream
Weight1618.84 kg
length of cabinet profile500 mm
length drawer side/drawer profile500 mm
dynamic load bearing25 kg
Country of originAT
Delivery unit10
Height Outside carton10.2 cm
Layer quantity40
Lenght Outside carton58.5 cm
Palette height without transport equipment102 cm
Pallet quantity400
Replenishment lead time2 day
Transport time2 day
Volume/10002325.6 dm³
Weight (tare)/100079.979 kg
Width Outside carton37.9 cm
minimum internal cabinet depth504 mm
Nominal Length500 mm
Colour/surfaceR9001 cream
drawer runner versioncushioned version
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Actual loss of extension84 mm
METABOX typeMETABOX steel side
Over extension8 mm
Weight based on1000 Piece
connection drawer side to frontalFront fixing bracket
connection drawer side to backscrew-on or quick-fix
packagingMultipack
Packaging unit 110
Packaging unit 20
Packaging unit 30
Customs tariff number8302420090
Drawer side heightM (86 mm)
Additional featuresFor optional part BLUMOTION
